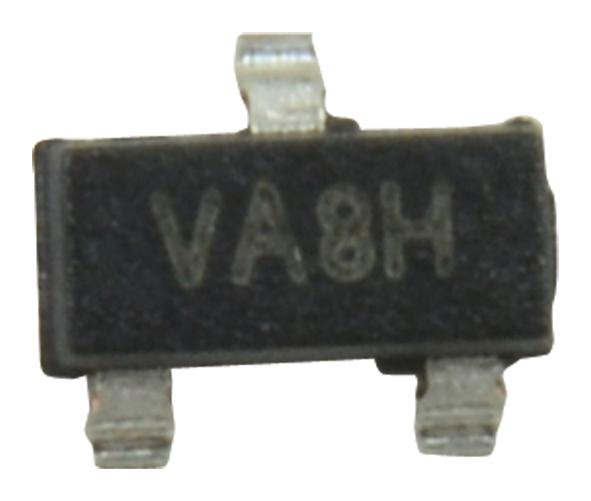

Microchip Technology MCP1525TITT High Precision Voltage Reference
The MCP1525T-I/TT is a low power, high precision voltage reference device in a 3-pin SOT-23 package. Designed for 3V to 5V systems, it minimizes power consumption with advanced CMOS circuitry and EEPROM trimming, offering an initial tolerance of 1% and a temperature coefficient of 50ppm/°C. It provides stable output over time and temperature, with low quiescent current of up to 100µA, an output voltage of 2.5V, and a maximum output current of 2mA. Useful in consumer electronics, portable devices, automation, medical equipment, and communication systems, it operates over -40°C to 85°C.
Microchip Technology MCP1525TITT High Precision Voltage Reference Specifications:
- Output Voltage: 2.5V
- Package: SOT-23-3
- Supply Voltage Range: 3V to 5V
- Initial Tolerance: 1%
- Temperature Coefficient: 50 ppm/°C
- Quiescent Current: Up to 100µA
- Maximum Output Current: 2mA
- Operating Temperature Range: -40°C to 85°C
- Low Power Consumption
- EEPROM Trimming Technology
- Stability Over Time and Temperature
- Applications: Consumer Electronics, Portable Devices, Automation, Power Management, Medical Equipment, Communication Systems
Buy the Buy Microchip MCP1525TITT High Precision Voltage Reference Part Number MCP1525TITT Online
Order the Microchip high precision voltage reference in SOT-23 package today. With 2.5V output, low quiescent current, and excellent stability across temperature, it is perfect for portable, industrial, and communication applications. Its EEPROM trimming ensures minimal variation, providing reliable power regulation and precise measurements in battery-powered systems, medical devices, and automation. Enjoy quick delivery and secure purchasing options online, ensuring your projects have the dependable voltage reference solution they need for optimal performance and long-term stability.
Get Microchip MCP1525TITT today—designed for low power, stability, and high precision in portable and communication devices.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1525TITT?
You can click on the BUY or RFQ button to purchase MCP1525TITT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1525TITT?
You can download the MCP1525TITT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1525TITT?
Microchip Technology
