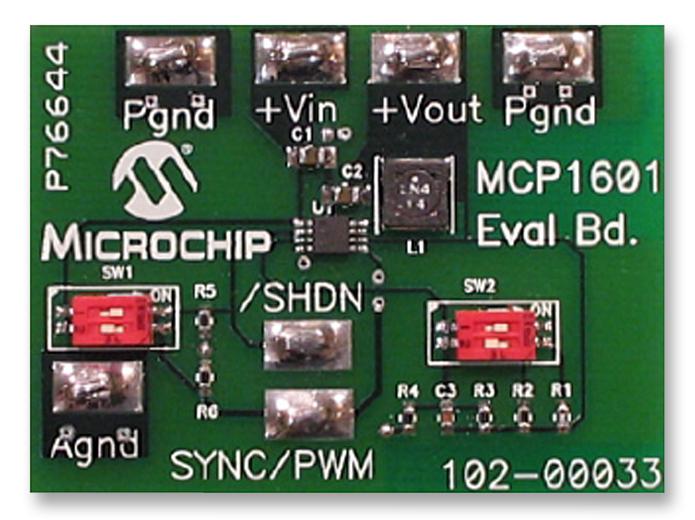

Microchip Technology MCP1601EV Synchronous Buck Regulator
The MCP1601EV is an evaluation board for the MCP1601 500mA synchronous buck regulator, designed for efficient power conversion in portable devices and communication systems. It features high side P-channel and low side N-channel switches, enabling high efficiency when converting input voltages from 2.7V to 5.5V to fixed outputs of 1.8V, 2.05V, 2.45V, or 3.28V. The board includes adjustable output voltage through DIP switches, mode selection for PWM or PFM, and external synchronization. Protections like over-temperature and undervoltage lockout ensure reliable operation, making it ideal for power management and DC/DC conversion applications.
Microchip Technology MCP1601EV Synchronous Buck Regulator Specifications:
- Input Voltage Range: 2.7V to 5.5V
- Maximum Output Current: 500mA
- Switching Modes: Automatic PFM/PWM, External synchronized PWM, Fixed 750 kHz internal oscillator
- Output Voltages: 1.8V, 2.05V, 2.45V, 3.28V (selectable via DIP switches)
- Inductor: 10 uH, SMD Coiltronics
- Capacitors: 10 uF ceramic, 68 pF ceramic
- Protective Features: Over-temperature, Undervoltage lockout, Soft start
- Package: 8-pin MSOP
- External Frequency: 1MHz clock source support
- Efficiency: High due to integrated synchronous switches
- Application: Portable devices, Power management, DC/DC conversion, Networking, Imaging
