Microchip Technology MCP1612EV Buck Regulator

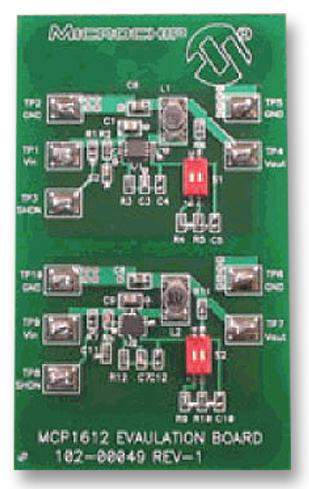

The MCP1612 evaluation board is a fully integrated buck regulator capable of delivering up to 1A of current at a switching frequency of 1.4 MHz. It features an adjustable output voltage, selectable from 0.8V up to the input voltage using an external resistor divider. The board includes two regulator circuits, each configurable to one of seven preset output voltages via a DIP switch, with optional voltage adjustment. It is available in 8-lead MSOP and DFN packages for comprehensive evaluation. The design requires the output voltage to be lower than the input voltage, with recommended input voltage for the second circuit exceeding the output voltage by at least 500mV, up to a maximum of 5.5V, to ensure proper operation. The evaluation board offers a shutdown terminal for testing startup and shutdown sequences, and is suitable for applications in power management, communications, portable devices, medical equipment, consumer electronics, and industrial systems.

View MCP1612EVDatasheet [pdf]

Buy the Buy Microchip MCP1612EV Buck Regulator Part Number MCP1612EV Online

Enhance your power management projects by purchasing the MCP1612EV buck regulator online. This fully integrated, high-frequency regulator delivers up to 1A of current with adjustable output voltage, suitable for portable devices, communications, and industrial applications. Featuring dual circuits with preset and adjustable voltages, a shutdown terminal, and packages in MSOP and DFN, it simplifies design and evaluation. Invest now to optimize efficiency, reduce size, and ensure reliable performance across a wide input voltage range up to 5.5V.

Buy Microchip MCP1612EV buck regulator now and experience reliable power management with adjustable output up to 1A for versatile electronic systems.
