Microchip Technology MCP16361TENMX Step-Down Converter
The MCP16361 is a high-efficiency, compact step-down DC-DC converter suitable for industrial and automotive applications. It operates from input voltages up to 48V and delivers up to 3A output current. Features include a fixed 2.2 MHz switching frequency, integrated high-side switch, soft-start, power good output, undervoltage lockout, overtemperature protection, and adjustable output from 2.0V to 24V. Available in an 8-lead 3x3 mm VDFN package, it ensures fast transient response, high accuracy regulation, and EMI-dithering for noise-sensitive environments.
Microchip Technology MCP16361TENMX Step-Down Converter Specifications:
- Input Voltage Range: 4.0V to 48V
- Output Voltage Range: 2.0V to 24V
- Maximum Output Current: 3A
- Switching Frequency: 2.2 MHz fixed, with dithering for EMI control
- Package: 8-lead 3x3 mm VDFN with exposed pad
- Switching Mode: PFM/PWM or PWM only, selectable
- Undervoltage Lockout: 4.0V start, operation down to 3.4V
- Overtemperature Protection: 155°C with hysteresis
- Internal soft-start, peak current limit, cycle-by-cycle current limit
- Power Good Output: Logic high at 93% of regulation, active high with external pull-up
- Bootstrap diode integrated, bootstrap voltage between 3V and 5.5V
- Efficiency: high, with low quiescent current typical 18 pA (not switching)
- Application: automotive, industrial, battery-powered systems, industrial DC-DC, medical devices
- Protection features: UVLO, OTP, OVP, cycle-by-cycle current limit

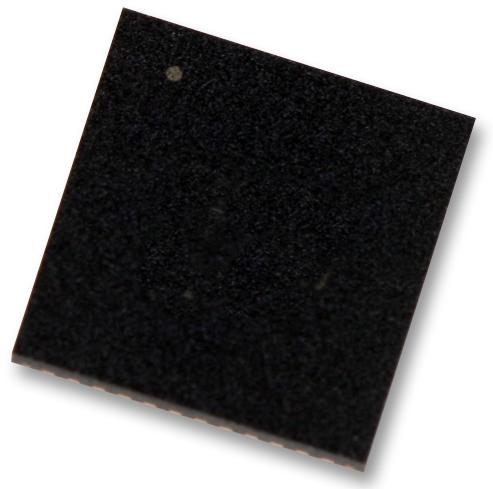

Buy the Microchip MCP16361 – Reliable Step-Down Regulator for Industrial Applications
Purchase the Microchip MCP16361 today to experience superior efficiency, compact design, and robust protection features ideal for industrial, automotive, and battery-powered applications. This high-performance DC-DC converter in a small 3x3 mm package delivers up to 3A continuous current, adjustable output from 2V to 24V, and operates from input voltages up to 48V. Its integrated features include soft-start, power good indicator, undervoltage lockout, and overtemperature protection, making it perfect for demanding circuits requiring dependable power conversion.
Order your Microchip MCP16361 step-down converter today and ensure your industrial projects benefit from reliable, high-efficiency power regulation.
Frequently Asked Questions
Where can I buy Microchip Technology MCP16361TENMX?
You can click on the BUY or RFQ button to purchase MCP16361TENMX from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP16361TENMX?
You can download the MCP16361TENMX datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP16361TENMX?
Microchip Technology
