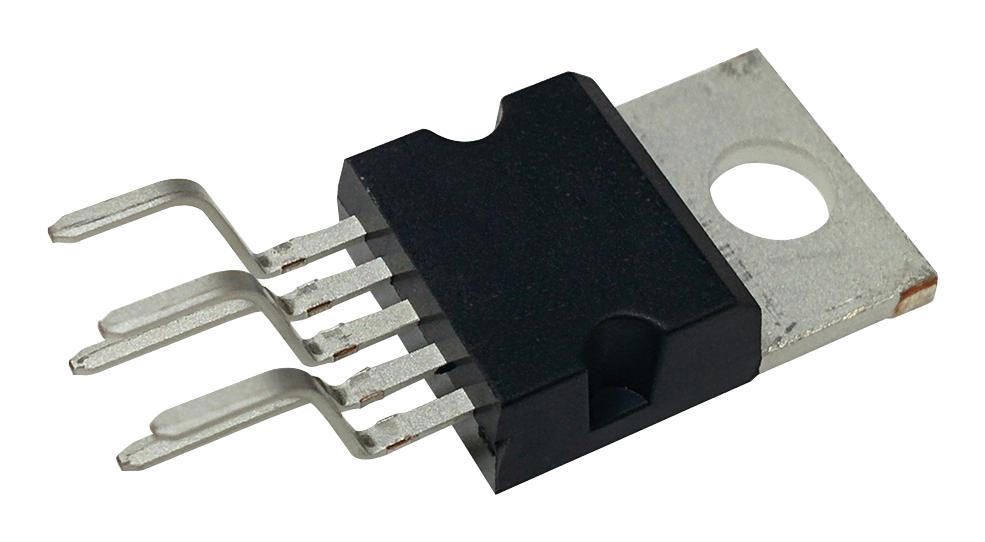

Microchip Technology MCP1825ADJEAT Low Dropout Regulator
The MCP1825/MCP1825S is a high current, low dropout linear regulator capable of supplying up to 500 mA with minimal quiescent current, making it ideal for portable applications. It features an adjustable or fixed output voltage from 0.8V to 5.0V, low dropout of 210 mV at full load, and stable operation with a 1 μF ceramic capacitor. It provides fast transient response, power good indication, and overtemperature/short circuit protections, suitable for battery-powered and space-constrained systems.
Microchip Technology MCP1825ADJEAT Low Dropout Regulator Specifications:
- Output Current Capability: 500 mA
- Input Operating Voltage Range: 2.1V to 6.0V
- Adjustable Output Voltage Range: 0.8V to 5.0V
- Fixed Output Voltages: 0.8V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
- Dropout Voltage: 210 mV typical at 500 mA
- Quiescent Current: < 120 pA
- Shutdown Current: < 0.1 pA
- Power Good Delay: 110 μs
- Protections: Overtemperature, Short circuit current limiting
- Package Options: TO-263, TO-220, SOT-223 for MCP1825; TO-263, TO-220, SOT-223 for MCP1825S
- Recommended Output Capacitor: ≥ 1 μF ceramic
- Input Capacitance: ≥ 1 μF recommended for stability
- Operating Temperature Range: -40°C to +125°C
- Thermal Resistance (TO-220): ~29.3°C/W
- Features include low noise, fast transient response, and thermal shutdown.
Buy the Microchip MCP1825 – Reliable Low Dropout Regulator for Industrial Applications
Enhance your electronic designs with the Microchip MCP1825 low dropout regulator, delivering 500 mA output current, low noise, and fast transient response. Available in various packages, it supports adjustable and fixed voltage options from 0.8V to 5.0V. Its low quiescent current and protection features extend battery life and system reliability. Easy to stabilize with just a 1 μF ceramic capacitor, making it ideal for space-constrained, portable, and high-demand applications. Purchase online now for dependable, efficient power regulation.
Order your Microchip MCP1825 series high current, low dropout regulator today and ensure robust, efficient power management for your critical projects.
Frequently Asked Questions
Where can I buy Microchip Technology MCP1825ADJEAT?
You can click on the BUY or RFQ button to purchase MCP1825ADJEAT from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP1825ADJEAT?
You can download the MCP1825ADJEAT datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP1825ADJEAT?
Microchip Technology
