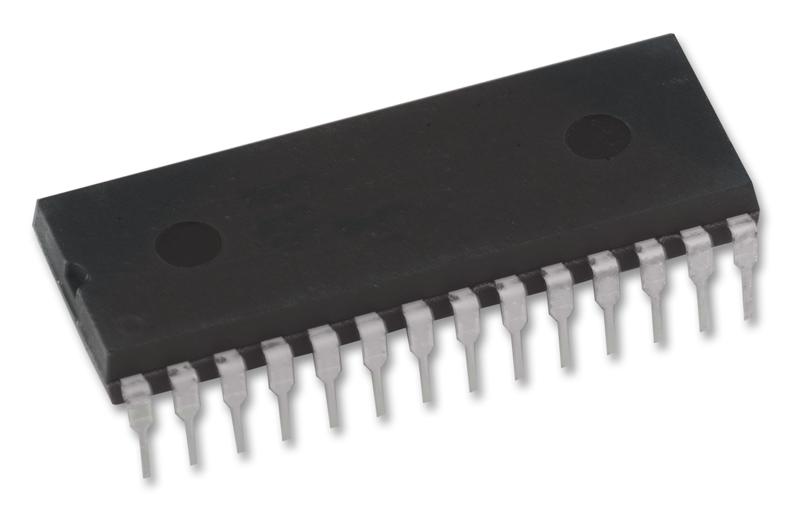

Microchip Technology MCP23016ISP I/O Expander
The MCP23016 is a 16-bit I/O expander with remote bidirectional ports, supporting configurable input/output, interrupt handling, polarity inversion, and high-current drive capabilities. Designed with CMOS technology, it features fast I2C communication (up to 400 kbits/sec), multiple package options including PDIP, SOIC, SSOP, and QFN, and operates over a wide voltage range of 2.0V to 5.5V. Suitable for various microcontroller applications, it includes internal power-on reset, configurable port polarity, and interrupt capture registers, making it ideal for expanding digital I/O in embedded systems.
Microchip Technology MCP23016ISP I/O Expander Specifications:
- 16-bit remote bidirectional I/O port
- Port default to 16 inputs
- I2C fast mode up to 400 kbits/sec
- Three hardware address pins for up to 8 devices
- High-current drive capability: +25 mA per port
- Open-drain interrupt output on input change
- Internal Power-On Reset (POR)
- Polarity inversion register for input port data
- Supported packages: 28-pin PDIP, SOIC, SSOP, QFN
- Operating voltage: 2.0V to 5.5V
- Wide industrial temp range: -40°C to +85°C
- Supports CMOS technology with low standby current
- Interrupt capture registers for port activity monitoring
- Pin configuration includes I2C SCL/SDA, interrupt, address, and power pins
- Package dimensions vary per type, with robust mechanical options
- Designed for microcontroller integration in industrial and embedded applications
Buy the Microchip MCP23016 – Reliable I/O Expander for Industrial Applications
Enhance your embedded systems with the Microchip MCP23016, a 16-bit I/O expander providing bidirectional port control, interrupt handling, and configurable polarity. Its broad voltage range of 2.0V to 5.5V and various package options, including PDIP, SOIC, SSOP, and QFN, ensure easy integration into industrial applications. Designed with CMOS technology, it offers low standby current, high-current drive capabilities, and internal reset features, making it a reliable choice for expanding digital I/O in microcontroller-based projects. Buy online today to upgrade your system's connectivity and control efficiently.
Get Microchip MCP23016 today—built for precision and long-lasting durability in industrial and embedded systems with high-current drive capability.
Frequently Asked Questions
Where can I buy Microchip Technology MCP23016ISP?
You can click on the BUY or RFQ button to purchase MCP23016ISP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP23016ISP?
You can download the MCP23016ISP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP23016ISP?
Microchip Technology
