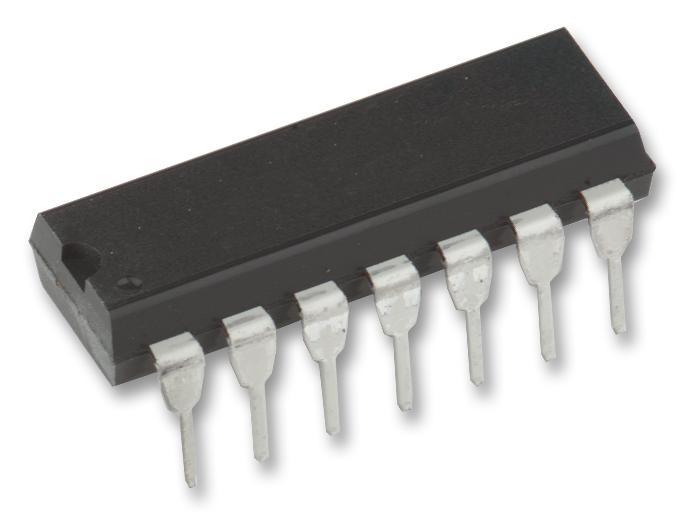

Microchip Technology MCP25050EP CAN I/O Expander
The MCP25050-E/P is an 8-bit I/O expander designed for Controller Area Network systems, supporting CAN V2.0B active and up to 1 Mbps data rates. It simplifies CAN node implementation without a microcontroller by offering digital I/Os, four 10-bit ADC channels (MCP2505X only), and PWM outputs with auto-message transmission triggered by input changes or error conditions. The device includes one mask, two filters for flexible message response, message scheduling, and automatic error message transmission. Pre-programmed non-volatile memory loads configuration at power-up, with features like configurable I/O lines, message scheduling, and ICSP for updates. Built with low-power CMOS, it is ideal for industrial and communication networking.
Microchip Technology MCP25050EP CAN I/O Expander Specifications:
- Supports CAN V2.0B active protocol
- Bus rate: up to 1 Mbps
- 8 I/O lines: configurable as input or output
- Four 10-bit analog input channels (MCP2505X only)
- Two 10-bit PWM outputs with programmable frequency
- Hardware Features: Non-volatile memory, auto load on power-up, message scheduling, configurable message response
- Supports one programmable mask and two acceptance filters
- Automatic message transmission on input state change or error conditions
- Low-power CMOS technology, operates from 2.7V to 5.5V
- Packages: 14-pin PDIP and SOIC
- Temperature ranges: industrial -40°C to +85°C, extended -40°C to +125°C
Buy the Microchip MCP25050EP – Reliable CAN I/O Expander for Industrial Applications
Improve your embedded and industrial communication systems by purchasing the Microchip MCP25050EP CAN I/O Expander online today. This compact, low-power device delivers robust CAN protocol support up to 1 Mbps, with digital input/output lines, four 10-bit analog inputs, and two PWM outputs. It features automated message scheduling, input change-triggered transmissions, and error condition notifications, all loaded automatically from non-volatile memory at power-up. Designed for industrial and networking applications, it simplifies system design without a microcontroller, ensuring performance, flexibility, and ease of integration.
Order your Microchip MCP25050EP CAN I/O Expander today and enhance your industrial communication systems with reliable, integrated CAN support and flexible peripherals.
