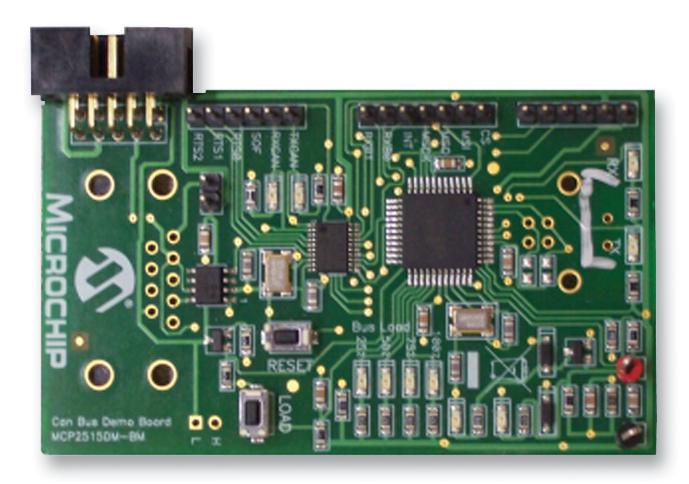

Microchip Technology MCP2515DMBM CAN Bus Monitor
The MCP2515 CAN Bus Monitor Demo Board is an educational kit enabling users to create and monitor a simple two-node Controller Area Network for testing and development. It features two identical boards connected via a CAN cable, supporting configuration and control through included PC software interface. The kit includes a USB connection, CAN traffic generation through a button, test points for monitoring MCP2515 pins, and a PIC18F4550 microcontroller with in-circuit programming capability. Ideal for developing, testing, and learning CAN bus communication.
Microchip Technology MCP2515DMBM CAN Bus Monitor Specifications:
- Supports two-node CAN bus network with PC interface
- Includes two identical boards and CAN cable
- USB interface for configuration and monitoring
- CAN traffic can be generated via onboard button
- Headers for MCP2515 pin monitoring (CAN, SPI, status)
- Microcontroller: PIC18F4550 with ICD2 in-circuit programming
- Supports configuration of MCP2515 registers and message transfer
- Ideal for CAN bus testing, learning, and development scenarios
Buy the Microchip Series MCP2515CAN BusMonitor: MCP2515DMBM
Purchase the CAN Bus Monitor kit online today to facilitate efficient testing and development of CAN networks. This easy-to-use board allows configuration and monitoring via PC, supports traffic generation, and provides test points for MCP2515 pin analysis. Its PIC microcontroller ensures reliable performance. Ideal for engineers, developers, and students, this kit streamlines your CAN bus projects and reduces setup time. Get your CAN Bus Monitor now and experience seamless CAN network testing and diagnostics.
Order your Microchip Series MCP2515DMBM CAN Bus Monitor Demo Board today and enhance your CAN communication testing and development projects with ease.
Frequently Asked Questions
Where can I buy Microchip Technology MCP2515DMBM?
You can click on the BUY or RFQ button to purchase MCP2515DMBM from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP2515DMBM?
You can download the MCP2515DMBM datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP2515DMBM?
Microchip Technology
