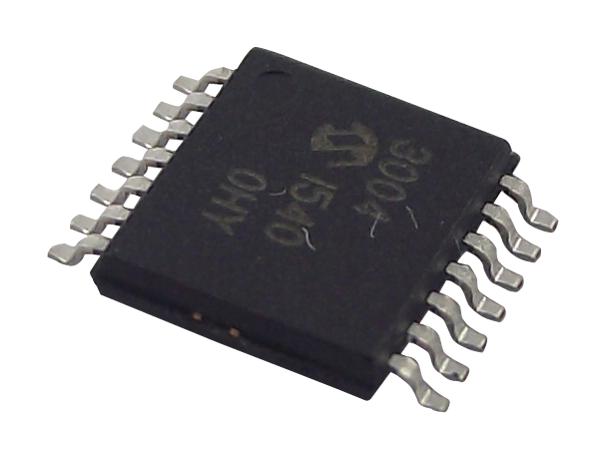

Microchip Technology MCP3004IST Analog-to-Digital Converter
The MCP3004/3008 are success approximation 10-bit analog-to-digital converters with on-board sample and hold circuitry. They operate over a broad voltage range of 2.7V to 5.5V, supporting up to 200 ksps. The MCP3004 provides four single-ended or two pseudo-differential inputs, while the MCP3008 offers eight single-ended or four pseudo-differential inputs. They feature low power CMOS technology, includes a serial SPI interface, and are ideal for sensor interface, data acquisition, process control, and battery-operated systems, ensuring high accuracy and low noise performance.
Microchip Technology MCP3004IST Analog-to-Digital Converter Specifications:
- Resolution: 10 bits
- Supported input channels: 4 (MCP3004) or 8 (MCP3008)
- Input configuration: Single-ended or pseudo-differential
- Supply Voltage Range: 2.7V - 5.5V
- Maximum Sampling Rate: 200 ksps at Vpp = 5V
- Standby Current: 5 nA typical
- Active Current: 2 μA maximum
- Analog Input Voltage Range: 0 to Vref (external reference) or Vpp
- Serial Interface: SPI compatible (modes 0,0 and 1,1)
- Operating Temperature Range: -40°C to +85°C
- Package Options: PDIP, SOIC, TSSOP
- Applications include sensor interface, process control, data acquisition, and portable systems.
Buy the Microchip Series MCP3004 MCP3008: 10-bit A/D Converter
Experience high accuracy with the Microchip MCP3004/3008 10-bit A/D converters. Supporting up to 8 single-ended or 4 pseudo-differential channels, these devices operate from 2.7V to 5.5V, ensuring reliable performance for sensor interfaces, process control, and portable systems. Their SPI interface simplifies integration, while 200 ksps conversion rate guarantees fast data collection. Designed for low power consumption, they are ideal for battery-operated applications, providing high linearity and noise immunity in a compact, versatile package.
Get Microchip MCP3004/3008 today—built for precision and long-lasting durability in sensor and data acquisition applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3004IST?
You can click on the BUY or RFQ button to purchase MCP3004IST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3004IST?
You can download the MCP3004IST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3004IST?
Microchip Technology
