Microchip Technology MCP3008TISL 8-channel ADC
The MCP3008T-I/SL is an 8-channel, 10-bit serial Analog-to-Digital Converter (ADC) featuring an SPI interface. It offers high performance with a sampling rate of 200,000 samples per second and low power consumption, making it suitable for embedded control applications. The device integrates a successive approximation register (SAR) architecture and includes on-chip sample and hold circuitry. It supports SPI modes 0,0 and 1,1, and features low power CMOS technology with typical standby current of 5nA and active current of 425μA. The ADC provides precise conversion with ±1 LSB DNL and INL.
Microchip Technology MCP3008TISL 8-channel ADC Specifications:
- Channels: 8 single-ended or pseudo-differential inputs
- Resolution: 10 bits
- Sampling Rate: Up to 200 ksps
- Interface: SPI modes 0,0 and 1,1
- Power Supply: +2.7V to +5.5V
- Standby Current: 5 nA (typical)
- Active Current: 425 μA (max)
- Analog Input Voltage Range: 0 - Vop (Vop = 2.7V to 5.5V)
- Differential Non-Linearity: ±1 LSB
- Integral Non-Linearity: ±1 LSB
- Architecture: SAR with on-chip sample and hold
- Temperature Range: -40°C to +85°C
- Package: SOIC, PDIP, TSSOP

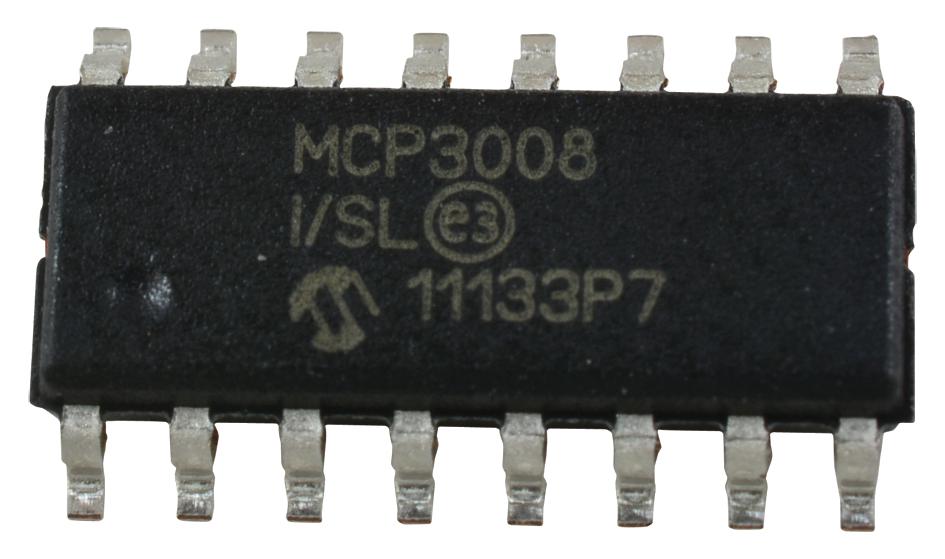

Buy the Buy Microchip MCP3008T-I/SL Part Number MCP3008TISL Online
Purchase the Microchip MCP3008T-I/SL today for high-speed, reliable 8-channel 10-bit analog-to-digital conversion. Featuring an SPI interface, it offers a sampling rate of up to 200 ksps, making it ideal for data acquisition, sensor interfacing, and process control. The low power CMOS design ensures energy efficiency, while its precise DNL and INL specifications provide consistent, accurate measurements. Available in a compact SOIC package, the MCP3008T-I/SL is perfect for embedded applications requiring fast, accurate, and stable analog-to-digital conversion.
Get Microchip MCP3008T-I/SL today—built for precision and long-lasting durability in embedded control systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3008TISL?
You can click on the BUY or RFQ button to purchase MCP3008TISL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3008TISL?
You can download the MCP3008TISL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3008TISL?
Microchip Technology
