Microchip Technology MCP3204CIP 12-Bit Analog Digital Converter
The MCP3204/3208 are 12-bit successively approximation Analog-to-Digital Converters with on-board sample and hold circuitry, capable of converting multiple single-ended or pseudo-differential inputs at up to 100 ksps. They feature low power CMOS technology, operate on a single 2.7V to 5.5V supply, and include an SPI-compatible serial interface. These devices are ideal for sensor interface, data acquisition, and process control applications within industrial temperature ranges. They come in PDIP, SOIC, and TSSOP packages, supporting reliable operation in embedded systems and automation projects.
Microchip Technology MCP3204CIP 12-Bit Analog Digital Converter Specifications:
- Resolution: 12 bits
- Sampling Rate: Up to 100 ksps at Vpp = 5V, 50 ksps at Vpp = 2.7V
- Input Channels: 4 (MCP3204) or 8 (MCP3208) single-ended or pseudo-differential inputs
- Power Supply: 2.7V to 5.5V
- Communication: SPI-compatible serial interface (modes 0,0 and 1,1)
- Power Consumption: Active current up to 400 µA at 5V, standby current around 500 nA
- Operating Temperature: -40°C to +85°C
- Package Options: PDIP, SOIC, TSSOP
- Analog Inputs: Programmable as single-ended or pseudo-differential
- Reference Voltage Range: 0.25 x Vref to Vref
- Integral Nonlinearity (INL): ±1 LSB (best version) to ±2 LSB
- Differential Nonlinearity (DNL): No missing codes
- Package Pin Count: 14 and 16 depending on model

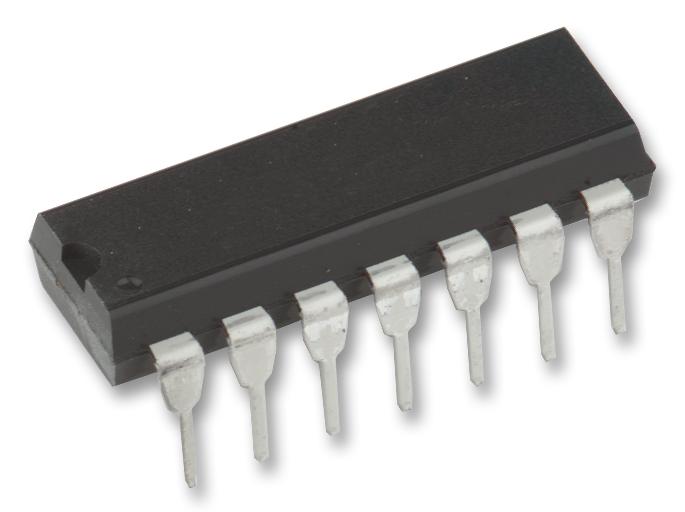

Buy the Microchip Series MCP3204/3208 12-Bit ADC: MCP3204CIP
Purchase the Microchip MCP3204CIP online today—an advanced 12-bit ADC designed for sensor interfaces, process control, and embedded data acquisition systems. This precision analog-to-digital converter offers high sampling rates up to 100 ksps, flexible input configurations, low power operation, and multiple package options for easy integration. Its SPI-compatible serial interface ensures straightforward communication with microcontrollers, making it ideal for industrial automation, instrumentation, and portable battery-powered applications. Order now to ensure reliable, accurate conversions with minimal power consumption and versatile connectivity options.
Get Microchip MCP3204CIP today—built for precision and long-lasting durability in industrial automation and sensor applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3204CIP?
You can click on the BUY or RFQ button to purchase MCP3204CIP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3204CIP?
You can download the MCP3204CIP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3204CIP?
Microchip Technology
