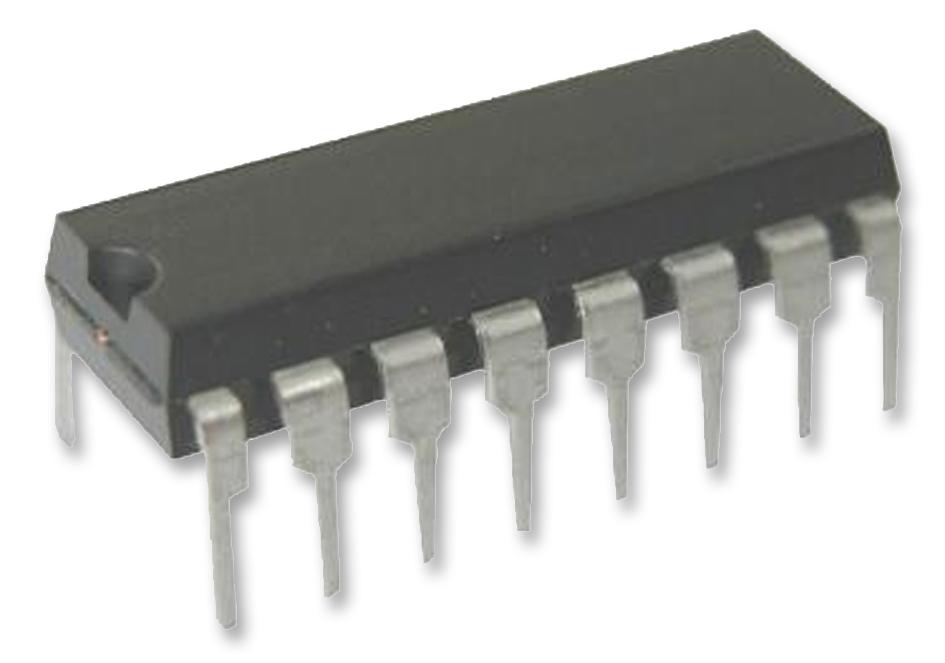

Microchip Technology MCP3208CIP 8-Channel Analog to Digital Converter
The MCP3208 is a 12-bit, 8-channel, successively approximation register (SAR) analog-to-digital converter (ADC) featuring low power CMOS technology. It provides flexible input configurations, capable of single-ended or pseudo-differential inputs, with a maximum sampling rate of 100 ksps. Communicating via SPI, the device operates over a broad voltage range from 2.7V to 5.5V and is suitable for sensor interface, data acquisition, and process control applications. With industrial temperature ratings and various package options, it offers reliable performance in demanding environments.
Microchip Technology MCP3208CIP 8-Channel Analog to Digital Converter Specifications:
- Resolution: 12 bits
- Channels: 8 (pseudo-differential or single-ended)
- Sampling Rate: Up to 100 ksps
- Input Voltage Range: 0 to Vref (2.7V to 5.5V supply)
- Power Supply: 2.7V to 5.5V
- Operation Temp Range: -40°C to +85°C
- Communication Interface: SPI (modes 0,0 and 1,1)
- Package Types: PDIP, SOIC, TSSOP
- Analog Inputs: Programmable as single-ended or pseudo-differential
- DNL: Typically 0 ±0.5 LSB, INL: +1 LSB
- Supply Current: Active ~400 µA at 5V, Standby ~500 nA
- Reference Input Voltage: 0.25 to Vref
- Reference Voltage: External or internal options
- Conversion Time: Approximately 12 clock cycles
- Device includes on-chip sample and hold circuitry
Buy the Buy Microchip MCP3208CIP Part Number MCP3208CIP Online
Acquire the Microchip MCP3208CIP online today to upgrade your sensor interfaces and data acquisition systems. Featuring 12-bit resolution, 8 channels, and a maximum sampling rate of 100 ksps, it adapts easily to various applications. Operates over 2.7V to 5.5V, making it suitable for low-power devices, with multiple package options for flexible mounting. Its SPI compatibility simplifies integration, providing reliable, high-performance analog-to-digital conversion for industrial, automotive, or consumer electronics projects.
Order your Microchip MCP3208CIP series 8-channel 12-bit ADC today and ensure precise data acquisition for your sensor and control systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3208CIP?
You can click on the BUY or RFQ button to purchase MCP3208CIP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3208CIP?
You can download the MCP3208CIP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3208CIP?
Microchip Technology
