Microchip Technology MCP3424EV High-Resolution Data Converter

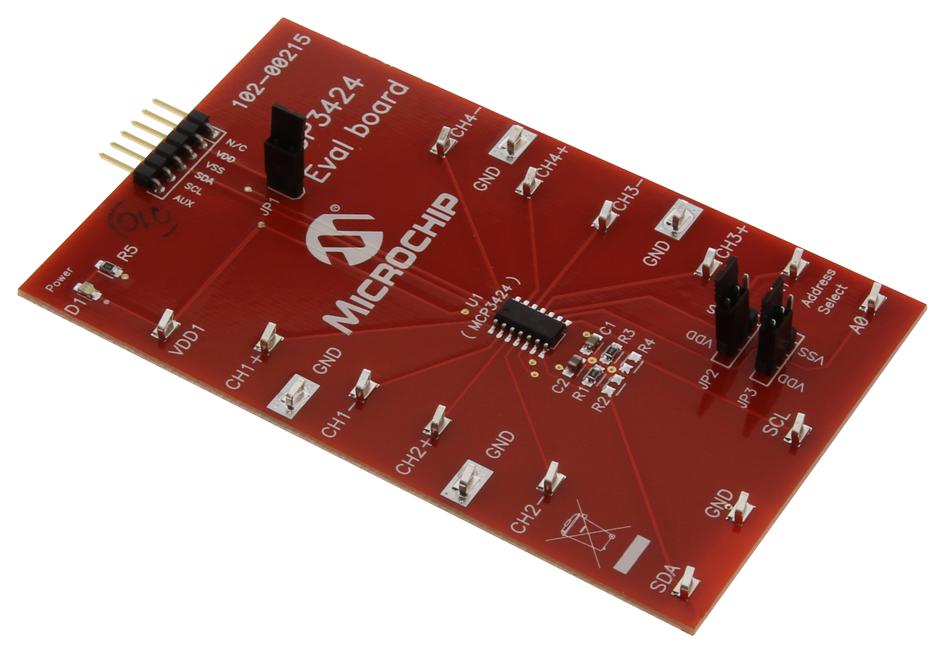

The MCP3424 Evaluation Board features an 18-bit Delta-Sigma ADC with four input channels, designed for precise analog-to-digital conversion in industrial and measurement applications. It incorporates an MCP3424 ADC IC, test points for signal monitoring, and supports I2C communication via PC interface with PICkit Serial Analyzer. The board offers configurable address bits, external Vpp options, and analog inputs for testing various signal levels. Ideal for firmware development, simulation, and data acquisition in complex industrial environments, this evaluation tool simplifies integration and testing of high-resolution ADCs.
Microchip Technology MCP3424EV High-Resolution Data Converter Specifications:
- ADC Resolution: 18 bits
- Input Channels: 4
- Device Code: 1101
- Supported I2C Data Rate: Up to 400 kHz
- Power Supply: 5V DC
- Analog Input Range: Vgg, Vpp, float configurations
- Address Bits: Determined by JP2 and JP3 connections
- Test Points: SDA, SCL, analog inputs, and power
- Test Communication: Via PICkit Serial Analyzer with USB interface
- Board Size: Compact PCB, RoHS compliant
- Test Pads: SDL, SDA, and analog input connections for scope monitoring
- Configuration via PC GUI for voltage, address bits, and input channels
- Supports external power Vpp or power from PICkit Serial Analyzer
- Certified for industrial-grade high-precision applications
Buy the Microchip MCP3424 Evaluation Board – Reliable 18-Bit ADC for Industrial Applications
Order the Microchip MCP3424 evaluation board online today to experience high-resolution 18-bit ADC performance. This versatile development tool supports four analog input channels, configurable I2C address bits, and external Vpp options. Designed for industrial data acquisition, it allows engineers and developers to easily test and integrate high-precision ADCs into measurement, control, and automation systems. Simplify firmware development, debug signals with test points, and connect seamlessly via PC GUI and PICkit Serial Analyzer for efficient testing and deployment.
Get Microchip MCP3424 evaluation board today—built for high-precision analog-to-digital conversion in industrial measurement systems.
