Microchip Technology MCP37211200ETE High-Speed Data Converter
The MCP37211-200 is a high-performance 12-bit, 200 Msps pipelined ADC with integrated decimation filters, noise-shaping requantizer, and configurable digital signal processing. Suitable for radar, communications, and portable instrumentation, it features harmonic distortion correction, DAC noise cancellation, and sophisticated calibration algorithms for high accuracy and low power consumption. The device supports multi-channel operation with configurable input sequencing, and incorporates flexible digital down-conversion, phase offset, and beamforming capabilities. It is available in Pb-free packages, with options for automotive or industrial temperature ranges, enabling versatile deployment in demanding environments.
Microchip Technology MCP37211200ETE High-Speed Data Converter Specifications:
- Resolution: 12 bits
- Sample Rate: 200 Msps
- Input Bandwidth: 500 MHz
- Power Dissipation: 468 mW at 200 Msps with LVDS
- Supply Voltage: Analog 1.2V/1.8V, Digital 1.2V/1.8V
- Input Range: Up to 2.975 Vp.p programmable
- Analog Input Impedance: 5–7 pF
- Differential Inputs: Yes, programmable configuration
- Output Data Format: Offset Binary or Two's Complement
- Interfaces: CMOS, DDR LVDS

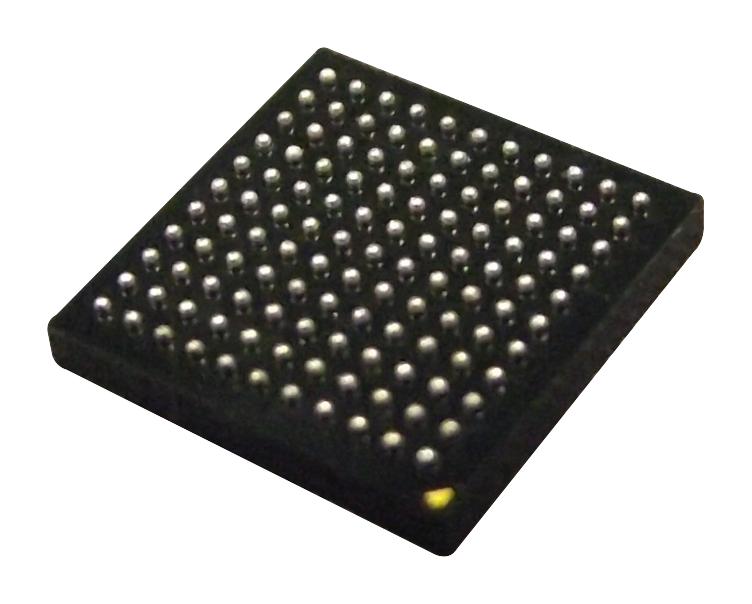

- Package Options: TFBGA 121, VTLA 124
- Automotive Qualification: AEC-Q100 (for TFBGA package)
- Operating Temperature: -40°C to +125°C (extended), -40°C to +85°C (industrial)
- Calibration: Harmonic distortion correction, noise cancellation, background calibration
- Digital Processing: Decimation filters, digital down-conversion, beamforming, phase offset
Buy the Microchip Series ADC: 12-Bit 200Msps High-Speed Data Converter
Discover the exceptional performance of the Microchip Series high-speed data converter, offering 12-bit resolution at 200Msps with integrated filters, calibration, and flexible digital processing. Ideal for radar, communication, and instrumentation, it delivers low power dissipation of 468mW and supports advanced features like harmonic distortion correction, DAC noise cancellation, and multi-channel operation. Choose from Pb-free packages with automotive or industrial temperature ranges. Order online today and elevate your high-speed data acquisition systems with trusted Microchip quality, quick delivery, and comprehensive support.
Order your Microchip Series ADC 200Msps high-speed data converter today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology MCP37211200ETE?
You can click on the BUY or RFQ button to purchase MCP37211200ETE from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP37211200ETE?
You can download the MCP37211200ETE datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP37211200ETE?
Microchip Technology
