Microchip Technology MCP37221200ETE High-Speed Multi-Channel ADC
The MCP37221200ETE is a high-performance, low-power 14-bit 200 Msps analog-to-digital converter with built-in digital decimation filters, multi-channel input, and advanced calibration algorithms. It features differential inputs, programmable full-scale range, and flexible output configurations including CMOS, LVDS, and serialized data formats. Suitable for high-speed data acquisition, communications, radar, and medical imaging applications, the device supports multi-channel operation with digital down-conversion, fractional delay recovery, and digital gain/offset adjustment for precise multi-sensor processing.
Microchip Technology MCP37221200ETE High-Speed Multi-Channel ADC Specifications:
- Resolution: 14-bit
- Sample Rate: 200 Msps
- Analog Input Range: Programmable up to 2.975 Vp-p
- Input Bandwidth: 500 MHz
- Power Dissipation: 436 mW (Digital I/O Mode), 490 mW (LVDS Interface)
- Supply Voltage: Digital: 1.2V, 1.8V; Analog: 1.2V, 1.8V

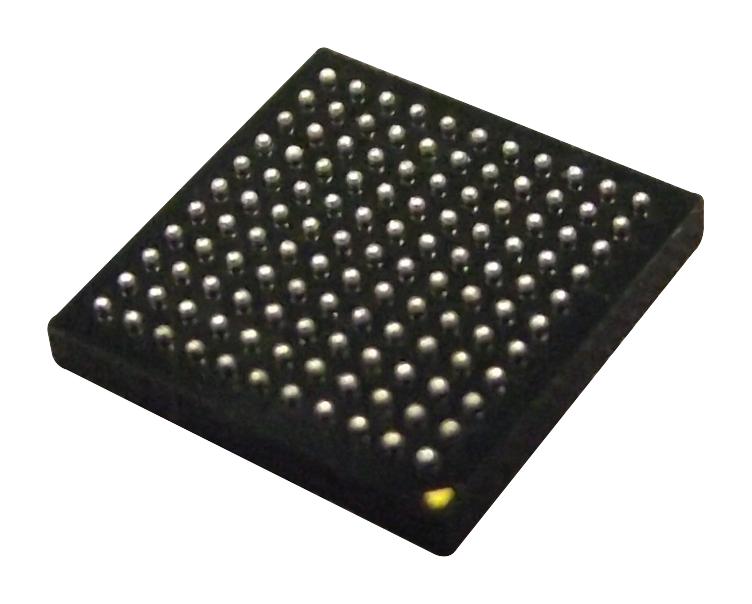

- Package Options: TFBGA-121 (AEC-Q100 qualified for automotive), VTLA-124 (Industrial temperature)
- Input Channels: Up to 8 differential channels with programmable input order and selection
- Output Formats: CMOS, DDR LVDS, Serialized LVDS (octal mode), with optional data randomizer
- Built-in Calibration: Harmonic distortion correction, DAC noise cancellation, dynamic element matching
- Digital Post-Processing: FIR decimation filters, digital down-conversion, fractional delay recovery, phase/gain/offset correction
Buy the Buy Microchip MCP37221200ETE High-Speed Multi-Channel ADC Online
Order the Microchip MCP37221200ETE now to enhance your high-speed data acquisition systems. This 14-bit 200 Msps ADC features built-in digital decimation filters, multi-channel input support with programmable order, and advanced calibration algorithms including harmonic correction and noise cancellation. Its low power consumption of 436 mW in digital I/O mode makes it ideal for applications like communications, radar, ultrasonic imaging, and industrial data systems. Available in Pb-free packages, it offers flexible output formats—CMOS, LVDS, and serialized LVDS—allowing seamless integration into your designs. Achieve high accuracy and performance with this versatile ADC today.
Get Microchip MCP37221200ETE today—built for high-speed precision data acquisition with advanced calibration and flexible digital outputs.
Frequently Asked Questions
Where can I buy Microchip Technology MCP37221200ETE?
You can click on the BUY or RFQ button to purchase MCP37221200ETE from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP37221200ETE?
You can download the MCP37221200ETE datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP37221200ETE?
Microchip Technology
