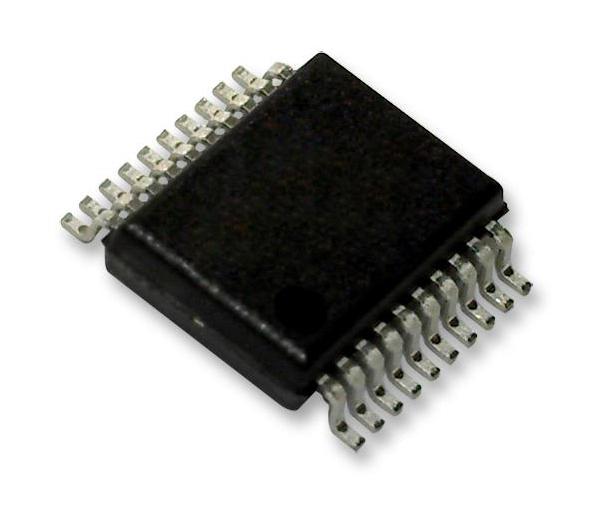

Microchip Technology MCP3911A0ESS Dual Channel Sigma-Delta ADC
The MCP3911A0 is a dual-channel 16/24-bit resolution Delta-Sigma analog-to-digital converter (ADC) with programmable gain amplifiers, auto-zeroing, and a high-speed SPI interface. Designed for energy metering, power measurement, and instrumentation, it features low power consumption, differential inputs, and adjustable phase delay. Its internal voltage reference and configurable oversampling ratios ensure high accuracy and dynamic range. The device supports extensive calibration, temperature compensation, and multiple shutdown modes for power efficiency, making it ideal for precision measurement applications requiring reliable, synchronized data acquisition.
Microchip Technology MCP3911A0ESS Dual Channel Sigma-Delta ADC Specifications:
- Resolution: 16/24-bit
- Resolution accuracy: Up to 94.5 dB SINAD
- Differential Inputs: CH0+/- and CH1+/-
- Internal Voltage Reference: 1.2V ±2%, low drift of 7 ppm/°C
- Input Voltage Range: ±600 mV/Gain, up to +1V absolute per input
- Sampling Frequency: Up to 4 MHz master clock, programmable OSR 32-4096
- Data Rate: 125 ksps maximum
- Power Consumption: 8.9 mW at 3.3V, 5.6 mW in low power mode
- Package: 20-lead QFN, SSOP, or SS packages, RoHS compliant
- Temperature Range: -40°C to +125°C
- Features: Programmable gain (up to 32V/V), phase delay, auto-zeroing, dithering for THD and SFDR improvement, and multiple shutdown modes
- Interface: High-speed 20 MHz SPI, mode 0,0 and 1,1 compatible
- Application support: energy metering, automotive, medical, power monitoring, and voice recognition
Buy the Buy Microchip MCP3911A0 Two Channel Sigma-Delta ADC Part Number MCP3911A0 Online
Get your Microchip MCP3911A0 Two Channel Sigma-Delta ADC shipped directly to your doorstep. Designed for energy metering, power measurement, and instrumentation, it offers high resolution, programmable gain, low power consumption, and synchronization features suitable for critical measurement systems. Its extensive calibration and temperature compensation ensure precision over wide environments. Easy to interface via high-speed SPI, it supports multiple shutdown modes for power efficiency, making it the ideal choice for professional applications requiring dependable, real-time data acquisition and analysis.
Order your Microchip MCP3911A0 Two Channel Sigma-Delta ADC today and enhance your power measurement projects with high accuracy and reliable performance.
Frequently Asked Questions
Where can I buy Microchip Technology MCP3911A0ESS?
You can click on the BUY or RFQ button to purchase MCP3911A0ESS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP3911A0ESS?
You can download the MCP3911A0ESS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP3911A0ESS?
Microchip Technology
