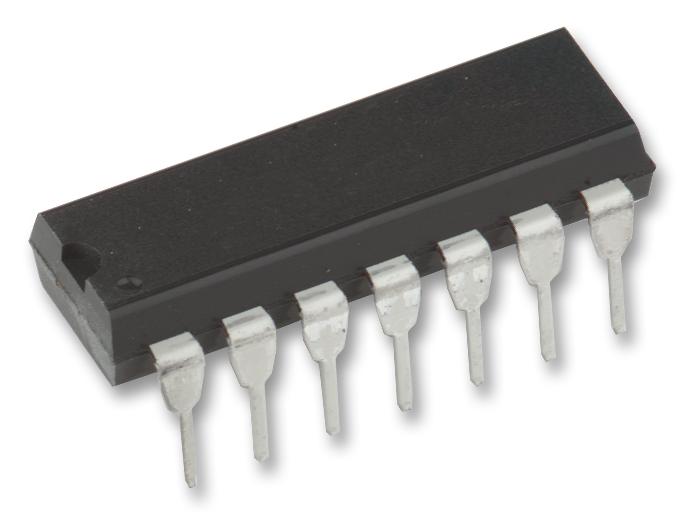

Microchip Technology MCP42010EP Digital Potentiometer
The MCP42010EP is a dual digital potentiometer with 10 kΩ resistance, featuring 256 taps per potentiometer, controlled via industry-standard SPI interface. It operates from a single supply voltage of 2.7V to 5.5V, with low static power consumption less than 1 μA. Designed for high precision in adjustable voltage, gain, and offset applications, it offers features such as shutdown mode, channel matching within 1%, and maximum temperature ratings up to +125°C for extended industrial use. Its compact packages include 8-pin SOIC and TSSOP options, suitable for automotive, industrial, and instrumentation systems.
Microchip Technology MCP42010EP Digital Potentiometer Specifications:
- Resistance: 10 kΩ
- Tap Points: 256
- Resolution: 8 bits
- Operating Voltage: 2.7V to 5.5V
- Temperature Range: -40°C to +125°C (extended temperature)
- Supply Current in Static Mode: <1 μA
- Package Types: 8-pin SOIC, TSSOP
- Channel Matching: Less than 1% (dual versions)
- Shutdown Mode: Yes, with hardware shutdown pin
- Wiper Resistance: Approximately 52Ω (10kΩ version)
- Linear Resistance Change: Yes, temperature coefficient approximately 800 ppm/°C
- Control Interface: SPI (Mode 0,0 and 1,1)
- Maximum Resistance: 10 kΩ, 50 kΩ, 100 kΩ available
- Package Size: 8-pin SOIC (150 mil), TSSOP (4.4 mm)
- Design for: Industrial automation, calibration, gain control, offset trimming, programmable voltage references
Buy the Microchip MCP42010EP – Reliable Digital Potentiometer for Industrial Applications
Purchase the Microchip MCP42010EP digital potentiometer now for high-precision voltage adjustment, gain, and offset control in industrial electronics. This dual-channel device offers 256 taps and operates from a 2.7V to 5.5V single supply, ensuring reliable performance across temperatures up to +125°C. Its low static power consumption makes it ideal for power-sensitive applications like instrumentation and automation systems. Choose this compact, high-performance potentiometer for stable, accurate, and programmable resistance control, delivered quickly through our online store.
Get Microchip MCP42010EP today—built for precision and long-lasting durability in industrial control and calibration systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP42010EP?
You can click on the BUY or RFQ button to purchase MCP42010EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP42010EP?
You can download the MCP42010EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP42010EP?
Microchip Technology
