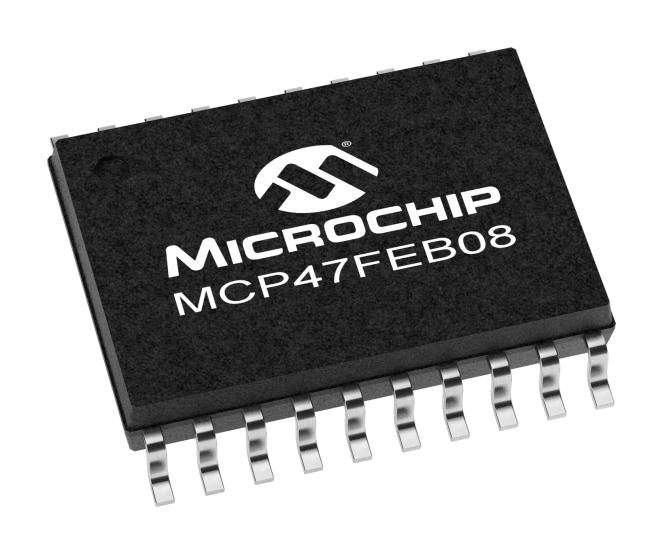

Microchip Technology MCP47FEB0820EST Octal Voltage DAC
The MCP47FEB0820EST is a high-resolution octal-channel voltage output DAC with 12-bit resolution, supporting an I2C interface, nonvolatile EEPROM memory, and configurable reference sources including internal band gap or external inputs. It features rail-to-rail output, programmable gain, and power-down modes for energy-efficient operation. Designed for precision voltage control in industrial and automation applications, this device offers a wide operating voltage range from 2.7V to 5.5V, ensuring reliable performance across extended temperatures from -40°C to +125°C. Its memory supports reinitialization to default or user-defined settings after power cycles, ensuring consistent system behavior.
Microchip Technology MCP47FEB0820EST Octal Voltage DAC Specifications:
- Resolution: 12-bit
- Channels: 8 (octal-channel configuration)
- Interface: I2C, supports Standard, Fast, and High-Speed modes up to 3.4 Mbps
- Supply Voltage Range: 2.7V to 5.5V (digital operation from 1.8V)
- Analog Output Range: Vgg to Vpp or Vpp/2 depending on configuration
- Reference Sources: internal band gap (1.22V typical), external buffered/unbuffered inputs
- Output Buffer: Rail-to-rail, low noise, low offset
- Gain Settings: programmable 1x or 2x (software controlled)
- Power Modes: Normal, Power-Down with selectable resistor loads (125kΩ, 1kΩ, or open)
- Operating Temperature: -40°C to +125°C
- Memory: EEPROM with auto-recall, supports high-voltage programming for configuration bits
- Device Package: 20-lead VQFN (5x5mm), TSSOP (20-lead)
- Absolute Max Ratings: Voltage on any pin relative to ground: -0.6V to +6.5V
- ESD Protection: >6kV HBM
- Thermal Resistance: ~36.1°C/W (VQFN), ~90°C/W (TSSOP)
Buy the Microchip Series MCP47FXB8 VQFN: 12-Bit Octal Voltage DAC: MCP47FEB0820EST
Get your Microchip Series MCP47FEB0820EST octal voltage output DAC now online. Designed for industrial, automation, and calibration projects, this 12-bit DAC with EEPROM memory offers configurable references, rail-to-rail output, and power management modes. Its versatile I2C interface supports high-speed data transfer, ensuring fast, accurate voltage adjustments. With extended temperature operation from -40°C to +125°C and robust protection features, order today to enhance your system’s reliability and achieve precise analog voltage control effortlessly.
Order your Microchip Series MCP47FEB0820EST octal DAC today and ensure precise voltage control in your industrial applications with reliable performance and flexible features.
