Microchip Technology MCP48FEB2420EST Octal DAC
The MCP48FEB24 is a high-resolution octal-channel voltage output DAC designed for precision control applications. It features 12-bit resolution, internal or external voltage reference options, and a low-noise, rail-to-rail output buffer with configurable gain. The device supports SPI communication with up to 20 MHz write and 10 MHz read speeds, and includes nonvolatile EEPROM memory for setting retention across power cycles. Power management features include power-down modes with configurable load resistors, ensuring efficient operation in portable and industrial systems. Its extended temperature range up to +125°C makes it suitable for diverse environments.
Microchip Technology MCP48FEB2420EST Octal DAC Specifications:
- Resolution: 12-bit (4096 steps)
- Number of Channels: 8
- Voltage Reference: Internal band gap, external buffered/unbuffered, Vpp
- Output Range: Vgg to Vpp, gain configurable (1x or 2x, 4x in band gap mode)
- SPI Interface: Supports Mode 0,0 and 1,1, up to 20 MHz write, 10 MHz read
- Power Supply Voltage: 2.7V to 5.5V (full), 1.8V to 2.7V (reduced specs)
- Power-down Modes: Load resistor (125kΩ, 1kΩ), high-impedance
- EEPROM Storage: Nonvolatile memory for output and configuration settings
- Operating Temperature: -40°C to +125°C
- Package: 20-Lead VQFN (5x5 mm), 20-Lead TSSOP
- Total Harmonic Distortion: -64 dB
- Slew Rate: Supports large capacitive loads with stabilization resistors
- Noise Spectral Density: Measured in nV/√Hz
- Transition Glitch: Minimized, specified in nV-sec
- Dimensions: As per package drawings, approx. 5x5 mm footprint

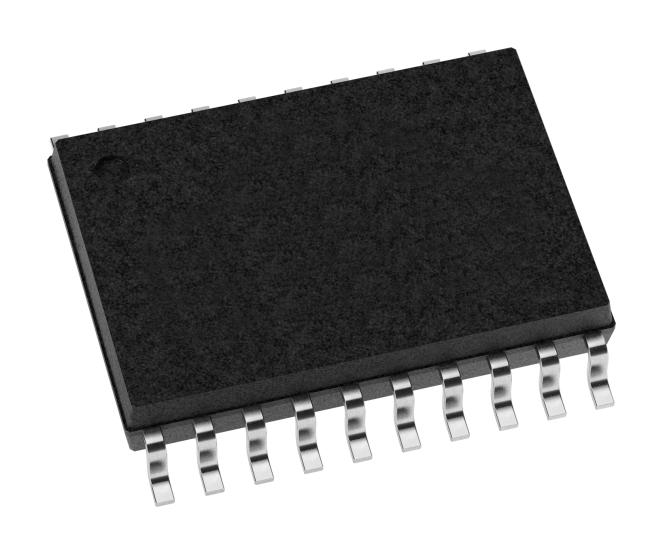

Buy the Buy Microchip MCP48FEB24 12-Bit Octal DAC Part Number MCP48FEB24 Online
Order the Microchip MCP48FEB24 online today to leverage its 12-bit resolution, configurable gain, EEPROM memory, and high-speed SPI interface. This octal-channel DAC offers accurate, low-noise voltage output suitable for industrial controls, sensor calibration, and portable instrumentation. Designed with an extended temperature range up to +125°C, it ensures stable performance across diverse environments. Its power management features include flexible power-down modes with load resistors, enabling energy-efficient operation. Complete your design with confidence by purchasing this reliable, high-performance DAC directly from our online store.
Buy Microchip MCP48FEB24 now and experience unmatched reliability and performance in precision voltage output for industrial and portable systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FEB2420EST?
You can click on the BUY or RFQ button to purchase MCP48FEB2420EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FEB2420EST?
You can download the MCP48FEB2420EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FEB2420EST?
Microchip Technology
