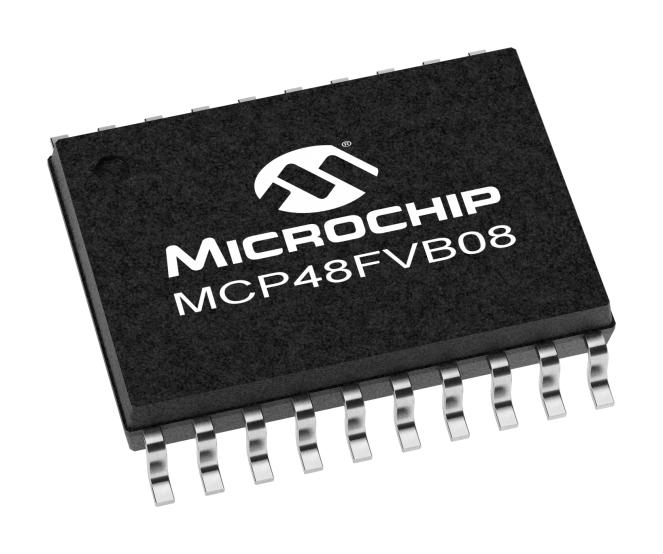

Microchip Technology MCP48FVB0820EST Octal Voltage DAC
The MCP48FVB08 is a high-precision, octal-channel voltage output DAC with 8-bit resolution, support for SPI communication, and nonvolatile EEPROM memory for stay-put configurations. It features a resistor ladder architecture with a buffered output buffer for rail-to-rail voltage swing, selectable gain, and multiple voltage reference options including internal bandgap, external buffered or unbuffered sources, and Vpp. The device includes power-on reset, brown-out reset, and power-down modes, with dedicated latch pins for synchronized updates, making it ideal for application requiring stable, low-power, and accurate voltage control in automation, sensor calibration, and instrumentation.
Microchip Technology MCP48FVB0820EST Octal Voltage DAC Specifications:
- Resolution: 8-bit (256 steps)
- Operating Voltage Range: 2.7V to 5.5V, 1.8V to 2.7V reduced specifications
- Output Voltage Range: Vgg to Vpp, configurable gain 1x or 2x, internally buffered for rail-to-rail swing
- Voltage Reference Options: Vpp, external buffered/unbuffered, internal bandgap (1.22V typical)
- Output Buffer: Rail-to-rail, low noise, low offset
- Power Modes: Power-on reset, brown-out reset, power-down with selectable resistive load
- Communication: SPI interface supporting up to 20 MHz write, 10 MHz read, modes 0,0 and 1,1
- Memory: Up to 8 nonvolatile DAC registers, EEPROM memory for configuration and output retention
- Temperature Range: -40°C to +125°C extended operating
- Package: 20-Lead VQFN 5x5 mm, TSSOP 20 with Exposed Thermal Pad
- Key features include: nonvolatile memory, configurable output gain, multiple voltage references, WiperLock technology, and synchronous update capability.
Buy the Microchip MCP48FVB08 – Reliable 8-bit DAC for Industrial Applications
Order the MCP48FVB08 online today to empower your applications with precise, voltage output control, nonvolatile memory, and robust SPI communication, ideal for automation, sensor calibration, and instrumentation, ensuring reliable performance in demanding environments.
Get Microchip MCP48FVB08 today—designed for high accuracy and low power consumption in industrial and calibration systems.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FVB0820EST?
You can click on the BUY or RFQ button to purchase MCP48FVB0820EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FVB0820EST?
You can download the MCP48FVB0820EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FVB0820EST?
Microchip Technology
