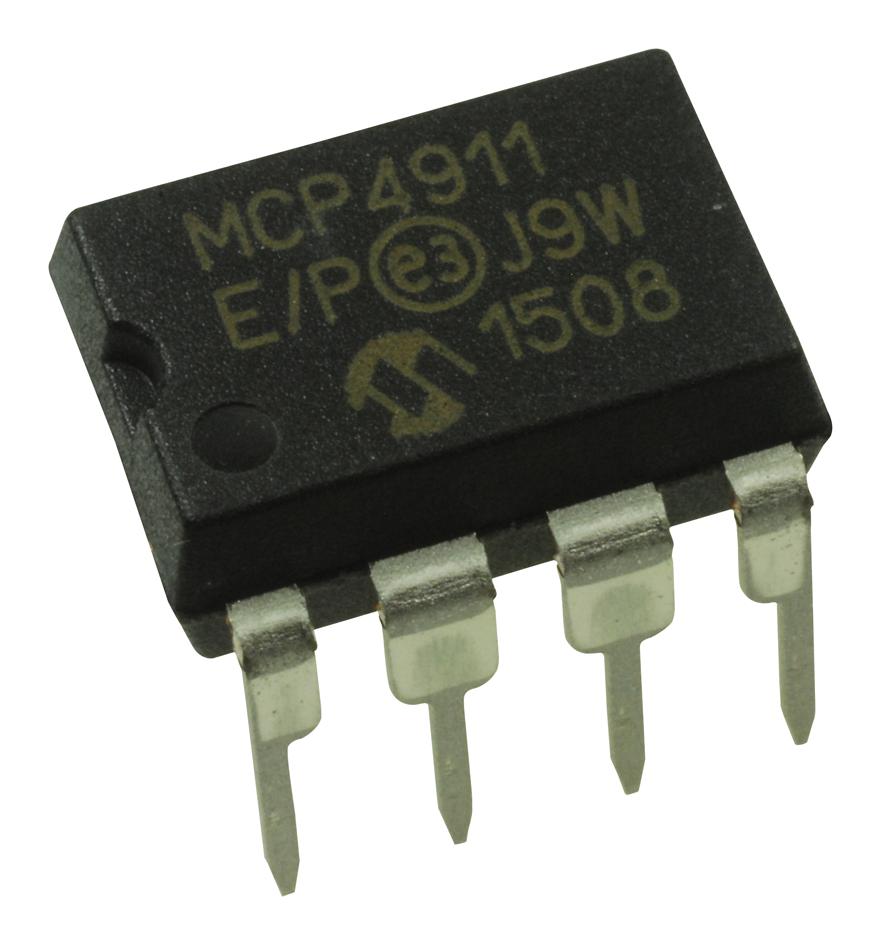

Microchip Technology MCP4911EP 10-bit Buffered DAC
The MCP4911-E/P is a single-channel, 10-bit buffered digital-to-analog converter (DAC) that operates from a 2.7V to 5.5V supply. It features an SPI-compatible interface supporting up to 20MHz clock speed. The device provides configurable full-scale output options between VREF and 2×VREF via a gain selection bit. It can be set to shutdown mode to save power, with most internal circuits disabled and the output buffer set to a high impedance state. The DAC includes double-buffered registers for synchronous output updates through the LDAC pin and a power-on reset circuit for reliable startup. Its resistive string architecture ensures low differential non-linearity (DNL) and quick settling times. The MCP4911-E/P supports rail-to-rail output, simultaneous latching of multiple channels, and external voltage references. It is suitable for applications in computing, communications, consumer electronics, sensing, and instrumentation.
Microchip Technology MCP4911EP 10-bit Buffered DAC Specifications:
- Resolution: 10 Bits
- Supply Voltage Range: 2.7V to 5.5V
- Interface: SPI-compatible supporting up to 20MHz clock
- Full-Scale Output: VREF to 2×VREF with gain selection
- Output Type: Rail-to-rail with high impedance in shutdown
- Settling Time: Quick, within microseconds
- DNL: Guaranteed low for accuracy
- Dissipation: Optimized for low power consumption
- Power-On Reset: Ensures reliable startup
- Architecture: Resistive string architecture for low non-linearity
- Multiple channel support with simultaneous latching
- External voltage reference input
- Package: PDIP, SOIC, MSOP, DFN
Buy the Microchip Series MCP49xx Digital-Analog Converter: MCP4911EP
Get the MCP4911-E/P digital-to-analog converter today and enjoy precise analog voltage output with fast settling times. Ideal for industrial control, sensor calibration, and communication systems, this DAC offers SPI compatibility supporting up to 20MHz clock, high accuracy, low non-linearity, and reliable power-on reset. Its robust architecture ensures high performance with low noise and excellent linearity. With external voltage reference support and a shutdown mode for power savings, the MCP4911-E/P is perfect for diverse applications requiring digital control of analog signals, available to purchase online with fast delivery.
Buy Microchip MCP4911EP now and experience unmatched reliability and performance in precision voltage output and industrial applications.
