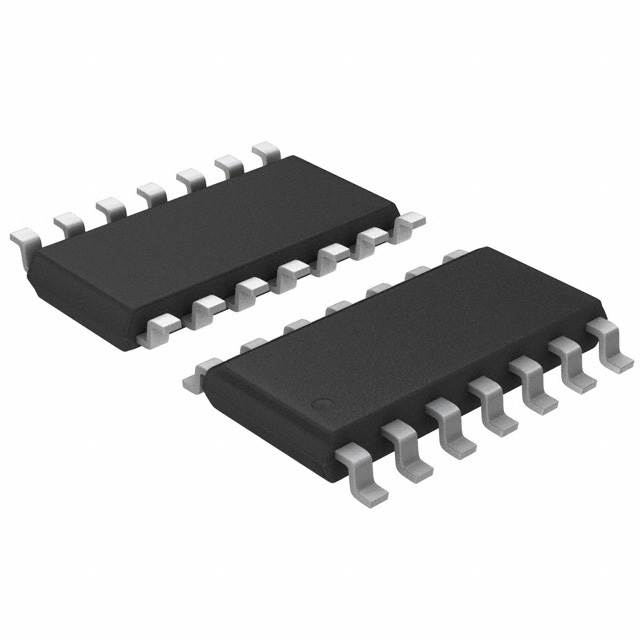

Microchip Technology MCP609TISL Precision Op Amp
The MCP609TISL is a low-noise, precision operational amplifier designed for high-impedance, single-supply applications. Featuring rail-to-rail output swing, low input bias current, and low offset voltage, it is ideal for battery-powered and sensitive measurement systems. This 14-lead TSSOP package offers excellent performance with an extended temperature range of -40°C to +85°C. Its key benefits include phase reversal prevention, low power consumption, and integrated chip select capability, making it suitable for medical, sensor, and instrumentation applications where accuracy and reliability are critical.
Microchip Technology MCP609TISL Precision Op Amp Specifications:
- Supply Voltage: 2.5V to 5.5V
- Input Offset Voltage: -250 to +250 μV
- Input Bias Current: 80 pA (max at +85°C)
- Output Voltage Swing: Vss+15 mV to Vpp-20 mV (loading 25 kΩ to Vss or Vpp)
- Common Mode Input Voltage Range: Vss-0.3V to Vpp-1.1V
- Gain Bandwidth Product: 155 kHz
- Slew Rate: 0.08 V/μs
- Temperature Range: -40°C to +85°C
- Package: 14-lead TSSOP
- Low power consumption, phase reversal prevention, no phase reversal
- Input Impedance: 100 GΩ (common mode), 103 GΩ (differential)
- Power Supply Rejection Ratio (PSRR): 80 dB
- Common Mode Rejection Ratio (CMRR): 75 dB
- Maximum Output Voltage Swing: Vss+15 mV to Vpp-20 mV
Buy the Buy Microchip MCP609TISL Part Number MCP609TISL Online
Order the Microchip MCP609TISL now to enhance your high-impedance, battery-powered, and precision measurement projects. This low-offset, rail-to-rail CMOS operational amplifier offers excellent performance with low input bias current and phase reversal protection. Perfect for medical, sensor, and instrumentation applications, the MCP609TISL is available in a compact 14-lead TSSOP package, ensuring reliable operation across a temperature range of -40°C to +85°C. Buy online today for fast delivery and guaranteed quality.
Get Microchip MCP609TISL today—built for precision and long-lasting durability in high-impedance and low-noise applications.
Frequently Asked Questions
Where can I buy Microchip Technology MCP609TISL?
You can click on the BUY or RFQ button to purchase MCP609TISL from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP609TISL?
You can download the MCP609TISL datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP609TISL?
Microchip Technology
