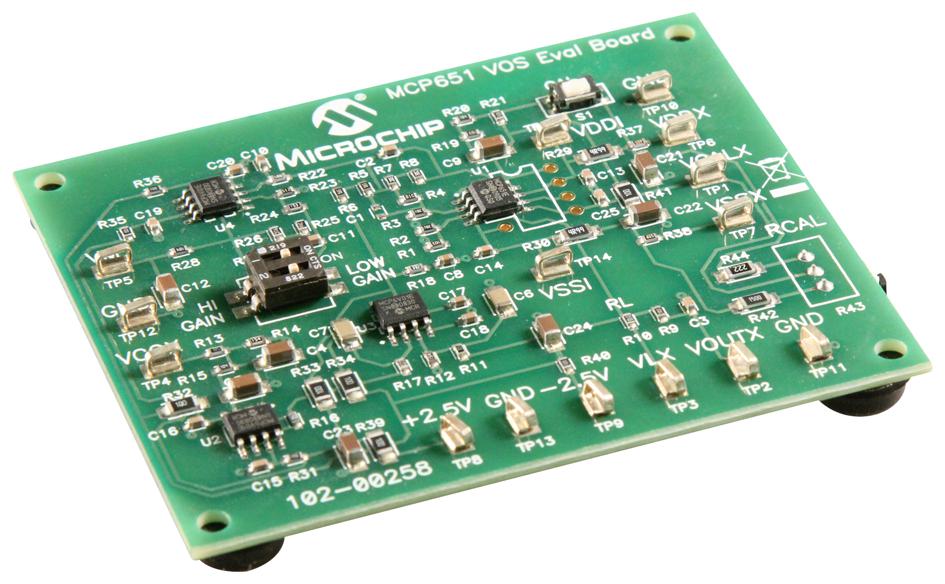

Microchip Technology MCP651EVVOS Offset Measurement Module
The MCP651 Input Offset Evaluation Board provides a simple method to measure a MCP651 op amp's input offset voltage under various conditions including PSRR, CMRR, temperature drift, and 1/f noise. Designed for room temperature operation, it features a potentiometer for VCAL adjustment, a calibration switch, footprints for SOIC8 or PDIP8 packages, and a gain selection switch. The board is suitable for applications like consumer electronics, security, and fiber optics. It includes test points, power supply connections, and operates with high accuracy for evaluating input offset voltages effectively.
Microchip Technology MCP651EVVOS Offset Measurement Module Specifications:
- Kit includes one MCP651 Input Offset Evaluation Board
- Supports MCP651 op amp in SOIC-8 and PDIP-8 packages
- Operates most effectively at room temperature (~25°C)
- Features potentiometer for VCAL adjustment, calibration switch, gain switch
- Input offset voltage measurement includes PSRR, CMRR, temperature drift, 1/f noise
- Test points for inputs, outputs, power supplies
- Supports supply voltages Vppx and Vggx up to +7.0V
- Low noise measurement environment recommended
- Board dimensions approximately 3.00 inch x 2.50 inch
- Power supplies recommended: ±2.5V or ±5V with minimal air movement during testing
Buy the Microchip MCP651EV – Reliable Offset Measurement for Industrial Applications
Order the Microchip MCP651 Input Offset Evaluation Board today for accurate, reliable measurement of input offset voltages in op amps. With adjustable VCAL, calibration, and support for multiple packages, this board is ideal for engineers and technicians working in high-precision analog systems. Its features include a gain switch, test points, and support for supply voltages up to 7V, enabling detailed analysis of offset behavior under various conditions. Enhance your testing capabilities and ensure optimal circuit performance by purchasing online now.
Buy Microchip MCP651EV now and experience unmatched reliability and performance in precision offset voltage testing.
