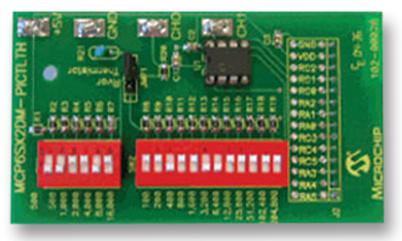

Microchip Technology MCP6SX2DMPCTLTH Programmable Gain Amplifier Demo Board
The MCP6SX2DMPCTLTH is a demonstration board featuring the MCP6S22 and MCP6S92 Programmable Gain Amplifiers, designed for precise thermistor applications. It processes analog signals before converting to digital, including an onboard thermistor with selectable high-accuracy NTC. The board provides multiplexed inputs for sensor calibration and expansion of microcontroller I/O pins, with adjustable resistors and DIP switches for customizing voltage divider configurations. PGA buffering enhances linearity and temperature resolution, making it ideal for sensing, instrumentation, measurement, medical, and industrial system testing and prototyping.
Microchip Technology MCP6SX2DMPCTLTH Programmable Gain Amplifier Demo Board Specifications:
- Includes MCP6S22 and MCP6S92 PGAs for instrumentation and sensing
- Onboard NTC thermistor with selectable high-accuracy options
- Multiplexed inputs for sensor calibration and expansion
- Adjustable resistors and DIP switches for voltage divider customization
- PGA buffering improves linearity and temperature resolution
- Test points for easy measurement and testing
- Suitable for medical, industrial, and measurement applications
- Designed for analog signal processing before ADC conversion
- Supports flexible configurations for measurement accuracy
- Compact board with prototyping features for testing various sensors
Buy the Microchip Series PGA: MCP6SX2 DMPCTLTH
Enhance your sensing and testing applications with the MCP6SX2DMPCTLTH demonstration board. Featuring MCP6S22 and MCP6S92 PGAs, it provides precise analog signal processing with multiplexed inputs, adjustable resistor series, and PGA buffering. Ideal for calibration, measurement, and prototyping in medical, industrial, and instrumentation systems. Easy to customize with DIP switches and test points for accurate signal conditioning. Perfect for engineers seeking reliable performance in sensor signal amplification and analog domain processing.
Buy Microchip MCP6SX2DMPCTLTH now and experience unmatched reliability and performance for sensing, instrumentation, and measurement projects.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6SX2DMPCTLTH?
You can click on the BUY or RFQ button to purchase MCP6SX2DMPCTLTH from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6SX2DMPCTLTH?
You can download the MCP6SX2DMPCTLTH datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6SX2DMPCTLTH?
Microchip Technology
