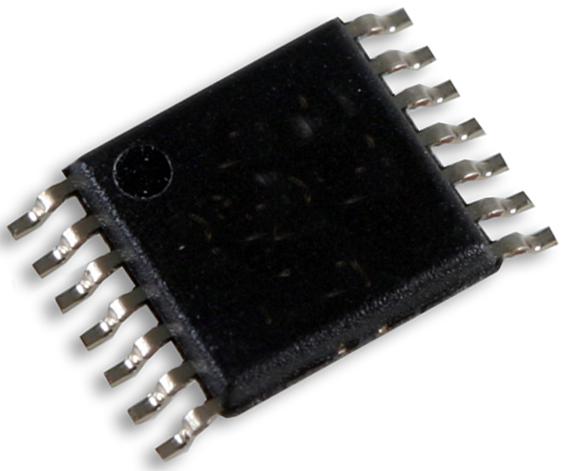

Microchip Technology MCP6V64EST Zero-Drift Operational Amplifier
The MCP6V64 is a high-precision, zero-drift operational amplifier designed for ultra-low offset voltage, very low noise, and excellent stability across temperature. It features a gain bandwidth of 1 MHz, rail-to-rail input/output, and adjustable offset correction. Suitable for sensor conditioning, medical instrumentation, and portable measurement devices, the MCP6V64 offers low power consumption, extended temperature range of -40°C to +125°C, and small package options including TSSOP and SOIC. Its advanced CMOS process ensures high accuracy, EMI robustness, and ease of use in precision analog applications.
Microchip Technology MCP6V64EST Zero-Drift Operational Amplifier Specifications:
- Gain Bandwidth Product: 1 MHz (typical)
- Input Offset Voltage: ±8 µV (max)
- Offset Voltage Drift: ±30 nV/°C (typical)
- Rail-to-Rail Input/Output: Yes
- Supply Voltage Range: 1.8V to 5.5V
- Quiescent Current: 80 pA per amplifier (typical)
- Operating Temperature Range: -40°C to +125°C
- Package Options: TSSOP, SOIC, MSOP, TDFN
- Input Noise Voltage Density: 26 nV/Hz (typical)
- Electromagnetic Interference Rejection Ratio at 1.8 GHz: 101 dB
- Input Bias Current: 50 pA (typical, at 25°C)
- Output Voltage Swing: Vss+4.7 mV to Vpp-5.9 mV
- Designed using advanced CMOS process for stability and accuracy
- Suitable for portable instrumentation, sensor conditioning, offset correction, and medical devices
- Extended temperature operation and small packages for space-constrained designs
Buy the Microchip Series MCP6V64 Precision Op Amp: MCP6V64
Purchase the Microchip MCP6V64 precision op amp online today. This zero-drift amplifier delivers ultra-low offset voltage, rail-to-rail I/O, and excellent stability. Perfect for sensor conditioning, medical equipment, and portable instrumentation, it offers a wide supply voltage range from 1.8V to 5.5V, operates over -40°C to +125°C, and comes in small packages such as TSSOP and SOIC. Designed using advanced CMOS technology, MCP6V64 ensures high accuracy, low noise, EMI robustness, and easy integration for demanding precision applications.
Get Microchip MCP6V64 today—built for precision, ultra-low offset, and long-lasting durability.
