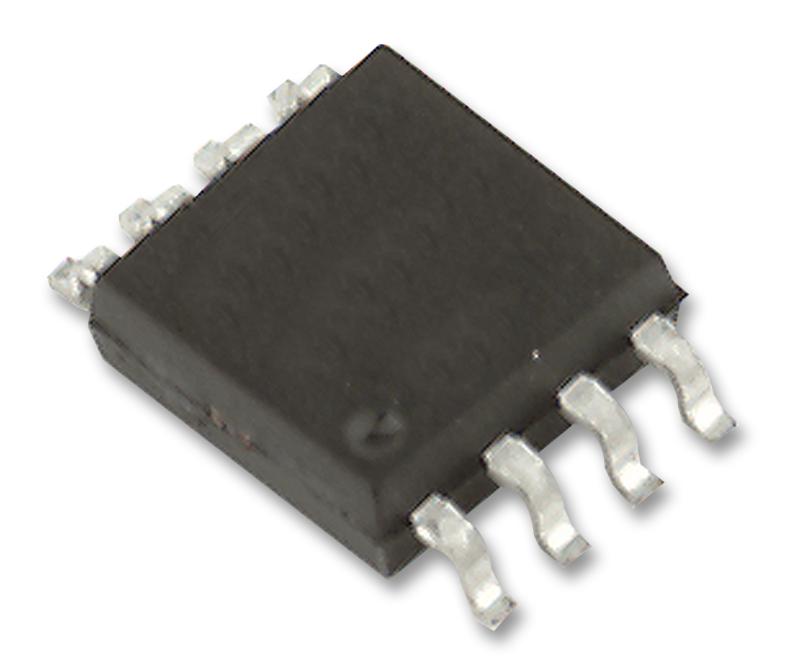

Microchip Technology MCP6V72EMS Zero-Drift Amplifier
The MCP6V72 family of zero-drift operational amplifiers features ultra-low input bias currents of 170 pA, high accuracy with Vos < 8 UV, and a gain bandwidth of 2 MHz. Designed for precision measurement in voltage and current sensing, they operate from 2V to 5.5V supplies and offer excellent noise, distortion, and EMI rejection. Packages include dual MSOP, 2x3 TDFN, and others suited for space-constrained, high-accuracy applications such as medical instrumentation, sensor conditioning, and portable devices. Their rail-to-rail inputs/outputs and extended temperature range support versatile, reliable field operation.
Microchip Technology MCP6V72EMS Zero-Drift Amplifier Specifications:
- Input Bias Current: 170 pA (typical)
- Input Offset Voltage: <8 UV (max)
- Gain Bandwidth Product: 2 MHz (typical)
- Voltage Range: 2V to 5.5V
- Input/Output: Rail-to-Rail
- Temperature Range: -40°C to +125°C
- Package Types: MSOP, 2x3 TDFN
- Noise Density: 21 nV/√Hz (f < 2 kHz)
- EMI Rejection Ratio at 1.8 GHz: 96 dB
- Total Harmonic Distortion: Low
- Power Consumption: Ultra-low, 170 pA per amplifier (typical)
Buy the Microchip MCP6V72 U– Reliable Zero-Drift Amplifier for Industrial Applications
Order the Microchip MCP6V72 zero-drift operational amplifier online today to benefit from its ultra-low bias current, high precision, and extended temperature operation. Its compact MSOP and TDFN packages make it ideal for space-constrained designs in medical, sensor conditioning, and portable measurement systems. With a bandwidth of 2 MHz, rail-to-rail inputs/outputs, and excellent EMI immunity, this op amp ensures reliable, high-accuracy performance in critical industrial applications. Purchase now for fast delivery and exceptional quality.
Get Microchip MCP6V72 today—built for precision and long-lasting durability in demanding industry environments.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6V72EMS?
You can click on the BUY or RFQ button to purchase MCP6V72EMS from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6V72EMS?
You can download the MCP6V72EMS datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6V72EMS?
Microchip Technology
