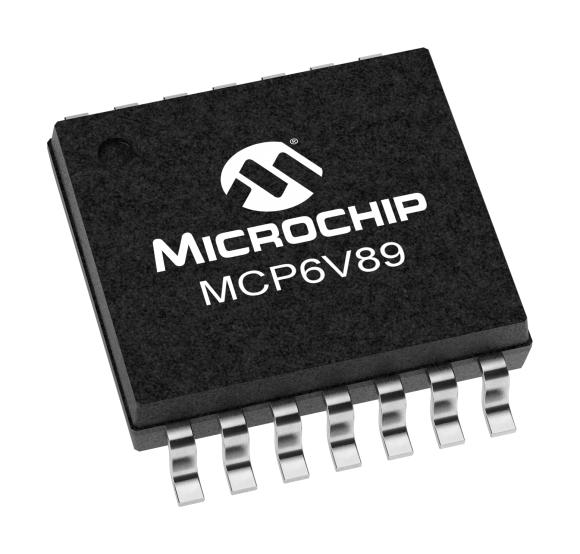

Microchip Technology MCP6V89EST Precision Op Amp
The MCP6V89 family offers ultra-low offset, zero-drift operational amplifiers with a 5 MHz gain bandwidth, rail-to-rail input/output, and low power consumption designed for high-precision measurements in portable, sensor, and medical applications. With extended temperature range from -40°C to +125°C, enhanced EMI immunity, and versatile package options including TSSOP, TDFN, MSOP, SC70, and SOT-23, these amplifiers support demanding industrial and instrumentation needs. They feature very low noise, excellent linearity, and are ideal for offset correction, data acquisition, and sensor conditioning in compact spaces.
Microchip Technology MCP6V89EST Precision Op Amp Specifications:
- Gain Bandwidth Product: 5 MHz (typical)
- Input Offset Voltage: ±25 μV (max)
- Offset Voltage Drift: ±150 nV/°C
- Power Supply Range: 2.2V to 5.5V
- Quiescent Current: 0.5 mA (typical)
- Input Noise Voltage Density: 28 nV/√Hz (f=0.1Hz to 10Hz)
- Output Voltage Swing: Vss + 35 mV to Vpp - 120 mV (at RL=1kΩ, G=+1)
- Extended Operating Temp Range: -40°C to +125°C
- Package Options: TSSOP, TDFN, MSOP, SC70, SOT-23
- Rail-to-rail input/output, Unity gain stable, Enhanced EMI protection
Buy the Microchip MCP6V89 U+2013 Reliable Precision Op Amps for Industrial Applications
Purchase the Microchip MCP6V89 ultra-low offset, rail-to-rail op amp online now. Designed for demanding industrial, sensor, and medical applications, this device offers 5 MHz bandwidth, exceptional stability, and extended temperature range. Its small form factor packages, including TSSOP, TDFN, MSOP, SC70, and SOT-23, ensure flexible integration into your designs. With low noise, excellent linearity, and enhanced EMI immunity, the MCP6V89 provides unmatched performance for offset correction, low-level sensor signal conditioning, and portable instrumentation. Order today for reliable, high-precision operation in critical applications.
Get Microchip MCP6V89 today—built for high-precision measurements, low noise, and extended temperature operation in sensor and instrumentation designs.
Frequently Asked Questions
Where can I buy Microchip Technology MCP6V89EST?
You can click on the BUY or RFQ button to purchase MCP6V89EST from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP6V89EST?
You can download the MCP6V89EST datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP6V89EST?
Microchip Technology
