Microchip Technology MCP73113EV1SOVP Single-Cell Battery Charger

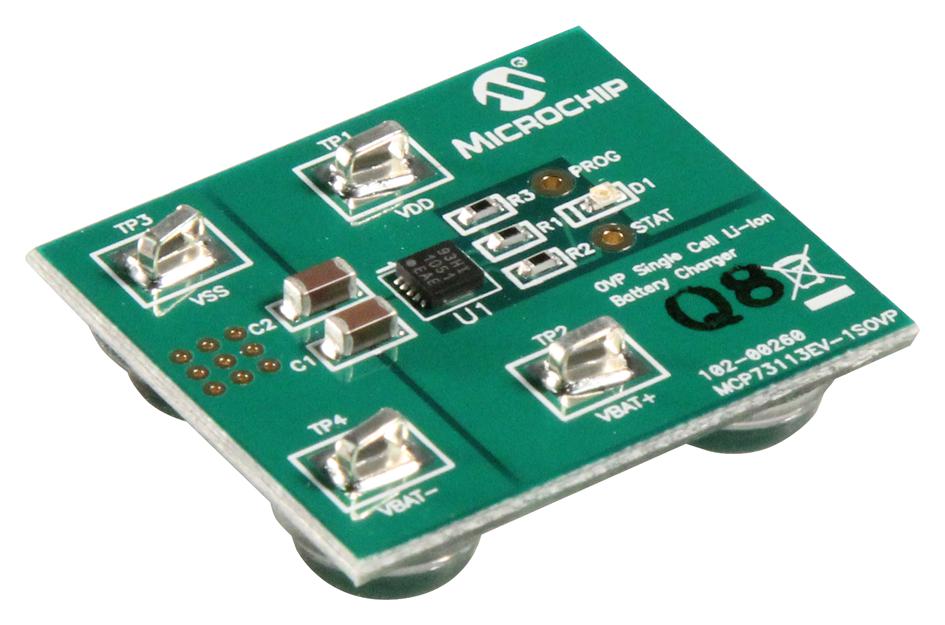

The MCP73113EV-1SOVP evaluation board demonstrates Microchip's integrated single-cell Li-ion/Li-Polymer battery charge controller with input overvoltage protection. It features selectable charging currents of 500mA and 1000mA, configurable by tying the PROG pin to ground, with a compact 3mm x 3mm DFN package and heat sink pad. Factory preset voltage is 4.20V, supporting preconditioning, safety timers, automatic recharge, thermal regulation, and charge termination. Designed for portable power management, consumer electronics, medical devices, and wireless systems, it offers high performance in space-limited applications.
Microchip Technology MCP73113EV1SOVP Single-Cell Battery Charger Specifications:
- Input Over Voltage Protection: 6.5V
- Charge Currents: 500mA, 1000mA (programmable by PROG pin)
- Charge Regulation Voltage: 4.20V (factory preset)
- Preconditioning of deeply depleted cells: 10%
- Preconditioning Timer: 32 minutes
- Safety Timer: 6 hours
- Automatic Charge Termination: 10%
- Thermal Regulation: Yes
- Charge Status Indicator: Blue LED
- Package: 3mm x 3mm DFN with Exposed Pad
- Supports preconditioning, automatic recharge, and timers
- Input Voltage Range: Up to 6.5V overvoltage protection
- Applicable for portable electronics, medical, wireless, imaging
- Multiple test points for circuit observation
Buy the Buy Microchip MCP73113EV1SOVP Part Number MCP73113EV1SOVP Online
Experience optimal power management with the Microchip MCP73113EV1SOVP evaluation board. Featuring adjustable current, input overvoltage protection, and a compact design, it is perfect for portable electronics, medical devices, and wireless systems. Easily observe circuit performance with multiple test points, and benefit from safety timers, thermal regulation, and automatic recharge features in a space-efficient package. Order online now to streamline development of your battery-powered projects with this reliable, versatile charging solution.
Order your Microchip MCP73113EV1SOVP evaluation board today and enhance your portable device power management with reliable, integrated battery charging solutions.
