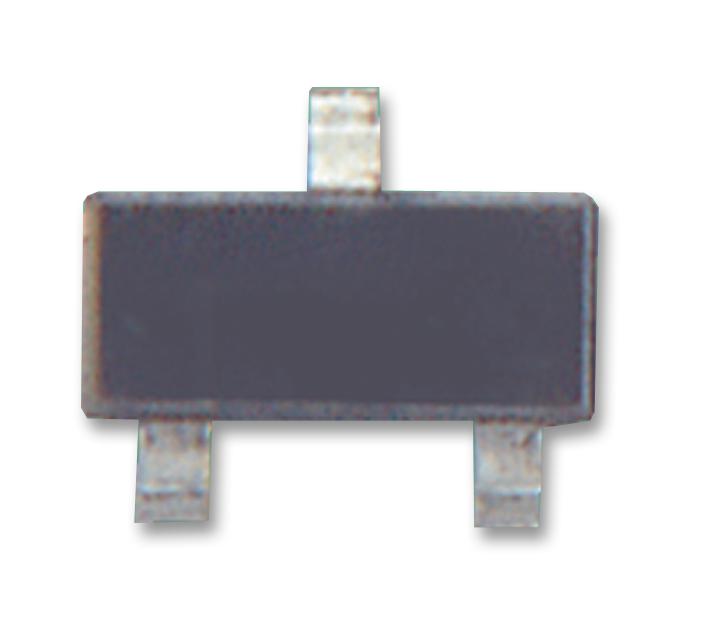

Microchip Technology MCP809T270ITT Voltage Supervisory Circuit
The MCP809/810 microcontroller supervisory circuit provides reliable voltage monitoring and reset functions for microcontrollers, ensuring power supply stability. It holds microcontrollers in reset until supply voltage reaches a stable level, and resets during brown-out conditions when voltage drops below preset trip points. Available with seven trip voltages from 2.55V to 4.85V, these devices feature push-pull outputs with active low (MCP809) or active high (MCP810) reset signals. The compact SOT-23-3 package operates over a -40°C to +85°C industrial temperature range, consuming only 45 nA typical current for optimal low-power applications.
Microchip Technology MCP809T270ITT Voltage Supervisory Circuit Specifications:
- Operating Voltage Range: 1.0 - 5.5 V
- Temperature Range: -40°C to +85°C
- Package: SOT-23-3
- Trip Points: 2.55V, 2.85V, 3.00V, 4.25V, 4.35V, 4.50V, 4.60V, 4.75V, 4.85V
- Reset Output: Push-pull (Active Low for MCP809, Active High for MCP810)
- Reset Duration: Holds for 350 ms (typical)
- Output Voltage (Vout): VoD = 1.0V
- Reset Threshold Accuracy: ±125 mV for 5V systems, ±75 mV for 3V systems
- Supply Current: 45 nA (typical at 5V)
- ESD Protection: 22 kV
- Reliability: Designed for low power, high temperature stability
- Features include brown-out detection, supply monitoring, and power-on reset functions.
- The device includes a bandgap reference, internal timer, and voltage comparator for precise monitoring.
Buy the Buy Microchip MCP809/810 Part Number MCP809T270ITT Online
Secure your microcontroller’s power stability today by purchasing the Microchip MCP809T270ITT voltage supervisory circuit online. This low-power device offers seven internal trip points from 2.55V to 4.85V, ensuring your circuits stay protected during power fluctuations and brown-out conditions. Its push-pull output feature provides flexible reset signaling, while its compact SOT-23-3 package is ideal for space-constrained applications. Rely on this robust and accurate supervisory device to enhance system reliability in industrial and consumer electronics, simplifying design and boosting performance.
Order your Microchip MCP809T270ITT voltage supervisory circuit today and ensure your microcontroller projects operate reliably with precise reset control.
