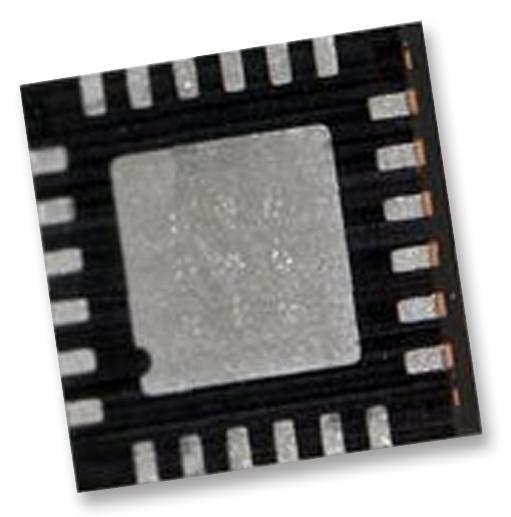

Microchip Technology MIC33M356HAYMPTR Power Module Buck Converter
The MIC33M356HAYMPTR is a high-efficiency, I2C programmable power module buck converter with HyperLight Load mode, integrated inductor, and 3A output current. It features input voltage range from 2.4V to 5.5V, ultra-fast transient response, up to 95% efficiency, and programmable output voltage from 0.6V to 1.28V or 3.84V with high resolution. Its control architecture ensures stable operation with output ripple and load regulation optimized for portable applications like SSDs, tablets, and low-voltage ASIC power supplies, plus thermal shutdown and current limiting protections.
Microchip Technology MIC33M356HAYMPTR Power Module Buck Converter Specifications:
- Input Voltage Range: 2.4V to 5.5V
- Output Voltage Range: 0.6V to 1.28V (5 mV resolution) or 0.6V to 3.84V (10/20 mV resolution)
- Maximum Output Current: 3A
- Efficiency: Up to 95%
- Frequency: Up to 3.4 MHz
- Thermal Shutdown: Yes
- Overcurrent Protection: Yes
- Power Good Output: Open-drain
- Package: 24-lead QFN 3 mm x 4.5 mm x 1.8 mm
- Junction Temperature Range: -40°C to +125°C
- Soft Start: Yes, configurable ramp time
- Input Voltage Tolerance: ±0.3V around Vin
- Peak Current Limit: 3.5A or 5A programmable
- Operation Mode: Continuous and discontinuous conduction modes
- Control Interface: I2C with 7-bit address 0x5B
- Protection Features: Thermal shutdown, hiccup current limiting, UVLO
Buy the Microchip Series MIC33M356 Buck Converter: MIC33M356HAYMPTR
Purchase the Microchip MIC33M356HAYMPTR today—this high-efficiency, adjustable output buck converter features integrated inductor and HyperLight Load mode for optimal performance in SSDs, tablets, and low-voltage ASIC applications. With input voltage support from 2.4V to 5.5V, it offers up to 3A current output, ultra-fast transient response, and efficiency up to 95%. Its versatile control allows I2C programmability, soft start, thermal shutdown, and overcurrent protection. Perfect for portable electronics requiring stable, reliable power with minimal noise and ripple, ensuring optimal device operation.
Get Microchip MIC33M356HAYMPTR today—built for precision and long-lasting durability in portable power management.
Frequently Asked Questions
Where can I buy Microchip Technology MIC33M356HAYMPTR?
You can click on the BUY or RFQ button to purchase MIC33M356HAYMPTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC33M356HAYMPTR?
You can download the MIC33M356HAYMPTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC33M356HAYMPTR?
Microchip Technology
