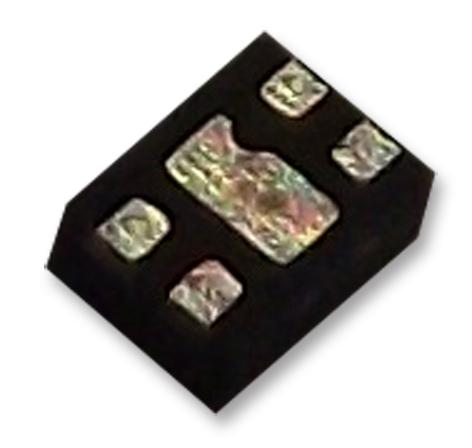

Microchip Technology MIC4705018YMLTR Low Dropout Regulator
The MIC47050 is a high-speed, ultra-low dropout dual-supply NMOS ULDO capable of sourcing 500mA with only a 1uF ceramic capacitor for stability. Designed for point-of-load applications, it features fast transient response, low dropout voltage of 44mV at 500mA, and low ground current. Its adjustable and fixed voltage options in compact 2mm x 2mm MLF and Thin MLF packages, combined with thermal protection and an enable pin, make it ideal for mobile processors, DSPs, FPGAs, and telecom systems requiring reliable low-voltage regulation.
Microchip Technology MIC4705018YMLTR Low Dropout Regulator Specifications:
- Input Voltage: 1.0V to 3.6V
- Bias Voltage: 2.3V to 5.5V
- Output Voltage Range: 0.4V to 2.0V
- Dropout Voltage: 44mV at 500mA
- Output Current: 0.5A
- Package: 2mm x 2mm MLF® and Thin MLF®
- Temperature Range: -40°C to +125°C
- Enable Pin: Active High CMOS logic
- Power Good Pin: Open drain, low when voltage below threshold
- Output Capacitor: Minimum 1uF ceramic for stability
- Low Ground Current: 15pA at load, 0.2V shutdown
- Thermal Shutdown: Yes, hysteresis 20°C
- Line Regulation: 0.005% maximum
- Load Regulation: 0.5% maximum
- Internal Protections: Over-temperature shutdown, current limiting
Buy the Micrel Series ULDO Low Dropout Regulator: MIC47050
Order the Micrel MIC47050 ULDO regulator online today to enjoy high-performance, ultra-low dropout voltage, small form factor, and excellent transient response. Perfect for powering mobile processors, DSPs, FPGAs, and telecom systems. Its compact 2mm x 2mm MLF package with thermal protection and adjustable or fixed voltage options ensures reliable and efficient power delivery in space-constrained environments. Upgrade your design with this proven solution, and benefit from easy integration, low ground current, and robust fault protection for demanding applications.
Buy Micrel MIC47050 now and experience unmatched reliability and high-current regulation in a compact package for mobile and telecom applications.
Frequently Asked Questions
Where can I buy Microchip Technology MIC4705018YMLTR?
You can click on the BUY or RFQ button to purchase MIC4705018YMLTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC4705018YMLTR?
You can download the MIC4705018YMLTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC4705018YMLTR?
Microchip Technology
