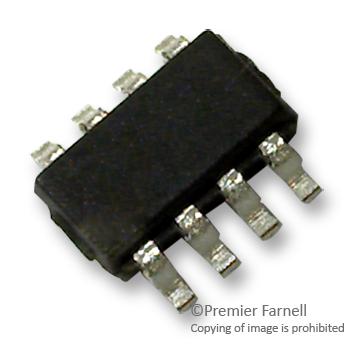

Microchip Technology MIC530912YD6TR Low Dropout Regulator
The MIC5309 is a high-performance, ultra-low dropout linear regulator designed for battery-powered applications requiring fast transient response and high efficiency. It can source up to 300mA from input voltages between 1.7V and 5.5V, with an ultra-low dropout voltage of 100mV at full load. Its small form factor in a 6-pin 1.6mm x 1.6mm MLF® package or TSOT-23 makes it ideal for portable devices like mobile phones, GPS receivers, and PDAs. The device features thermal shutdown, current limiting, and stable output with a ceramic capacitor, providing reliable power regulation in compact designs.
Microchip Technology MIC530912YD6TR Low Dropout Regulator Specifications:
- Input voltage range: 1.7V to 5.5V
- Output voltage: 0.8V to 2.0V (adjustable)
- Guaranteed 300mA output current
- Dropout voltage: 100mV typical at 300mA load
- Ground current: 23uA at full load
- High PSRR: up to 90dB @ 1kHz
- Output capacitor: 1uF ceramic or greater, stable with low ESR
- Bias supply voltage: 2.5V to 5.5V
- Packages: 6-pin 1.6mm x 1.6mm Thin MLF® and TSOT-23
- Protection: thermal shutdown, current limit
Buy the Micrel Series MIC5309 Low Dropout Regulator: MIC530912YD6TR
Purchase the Micrel MIC5309 low dropout regulator online today and ensure your portable electronics have efficient, reliable power. With a maximum output current of 300mA, ultra-low dropout voltage, and small form factor packages, this regulator is perfect for battery-powered devices requiring fast transient response and stable voltage regulation. Its low ground current and high PSRR enhance power efficiency and noise reduction, making it ideal for smartphones, GPS receivers, and PDAs. Order now and enhance your system’s power management with the MIC5309 for compact, high-performance applications.
Buy Micrel MIC530912YD6TR now and experience unmatched reliability and performance in portable power solutions.
Frequently Asked Questions
Where can I buy Microchip Technology MIC530912YD6TR?
You can click on the BUY or RFQ button to purchase MIC530912YD6TR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC530912YD6TR?
You can download the MIC530912YD6TR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC530912YD6TR?
Microchip Technology
