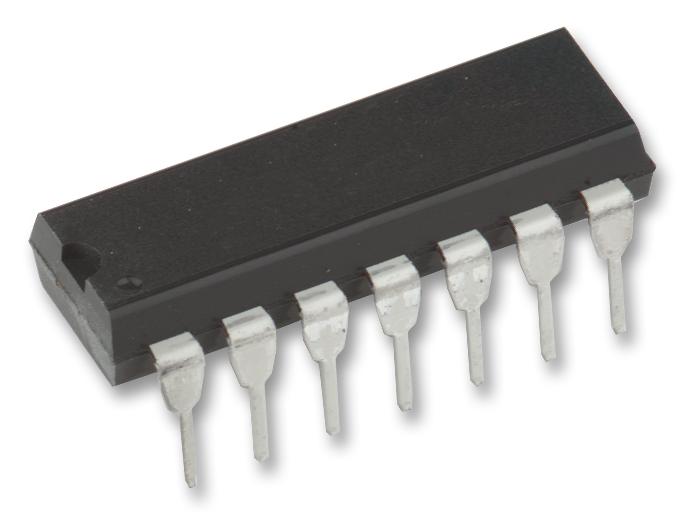

Microchip Technology MIC5800YN High-Current Parallel-Input Driver
The MIC5800/5801 are high-voltage, high-current 4/8-bit parallel-input latched drivers featuring CMOS data latches, bipolar Darlington transistor outputs, and CMOS control circuitry. They support data input rates over 5MHz at 5V supply and higher speeds at 12V. Outputs can sink 500mA with voltage up to 50V, suitable for relays, motors, and displays. Open-collector outputs include transient suppression diodes. They are compatible with CMOS, PMOS, NMOS, and TTL logic, incorporating low-power CMOS latches for flexible interface design.
Microchip Technology MIC5800YN High-Current Parallel-Input Driver Specifications:
- Output Voltage (Vce): 50V
- Supply Voltage (Vpp): 45V
- Input Voltage Range (Vin): 3V to Vpp + 0.3V
- Continuous Collector Current (Ic): 500mA
- Operating Temperature Range: -40°C to +85°C
- Package Power Dissipation: SOIC, PLCC, Wide SOIC; derate above 25°C
- Output Leakage Current: 100pA to 1A depending on conditions
- Input Resistance: 50kΩ to 300kΩ
- Clamp Diode Forward Voltage: 1.7V to 2.0V at 350mA
- Timing pulse widths and data setup/hold times compatible with logic control
- Open-collector outputs include transient suppression diodes
- RoHS Compliant: Yes (indicated as Pb-Free)
