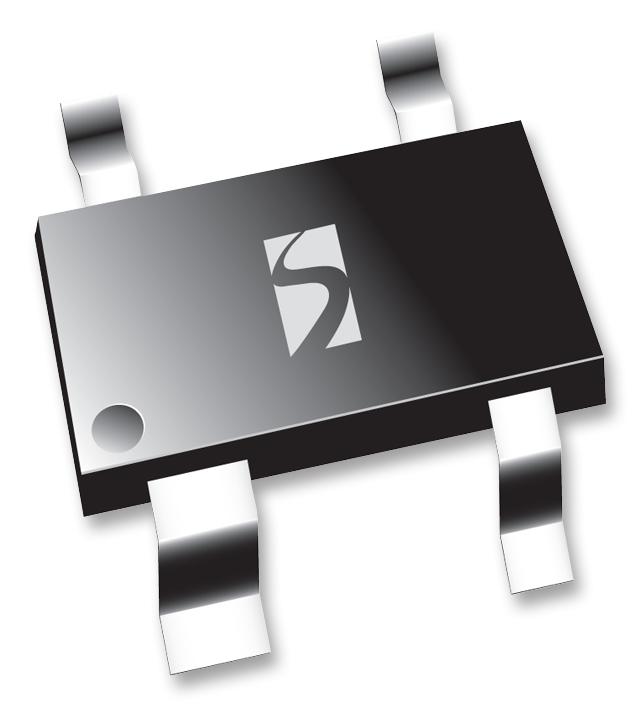

Microchip Technology MIC811MUYTR Microprocessor Reset Circuit
The MIC811/MIC812 series are cost-effective microprocessor supervisory circuits designed to monitor power supplies in microcontroller-based systems. The MIC811 features an active low /RESET output, while the MIC812 provides an active high RESET. These circuits assert a reset when the supply voltage falls below a set threshold, with a minimum 140ms reset pulse duration after voltage recovery. They operate with low supply current (around 5µA), support manual reset inputs, and come in a compact 4-pin SOT-143 package. Ideal for portable devices, embedded controllers, and critical microprocessor power monitoring.
Microchip Technology MIC811MUYTR Microprocessor Reset Circuit Specifications:
- Supply Voltage Range: 2.63V to 4.63V depending on model
- Reset Threshold Levels: 2.63V, 2.93V, 3.08V, 4.00V, 4.38V, 4.63V
- Reset Pulse Width: Minimum 140ms
- Supply Current: 5µA typical
- Manual Reset Input: Yes
- Output Types: Active low for MIC811, active high for MIC812
- Package: 4-pin SOT-143
- Operating Temperature: -40°C to +85°C
- Package Dimensions: 2.5 mm x 1.5 mm x 1.0 mm, small SOT-143 form factor
- Input Voltage: VCC supported from 2.63V up to 4.63V depending on model
Buy the Micrel Series MIC811 Microprocessor Reset: MIC811MUY
Order the Micrel MIC811MUY today for dependable microprocessor power supervision. Designed for low power consumption and compact size, this reset circuit ensures your devices operate reliably during power fluctuations. With a precise reset threshold, manual reset input, and a minimum pulse width of 140ms, it provides optimal microcontroller startup and recovery. Perfect for portable electronics, embedded controllers, and critical applications requiring stable power monitoring. Purchase now for quick online delivery and enhanced system reliability.
Get Micrel MIC811MUY today—built for precise and reliable microprocessor power supervision in portable and embedded systems.
Frequently Asked Questions
Where can I buy Microchip Technology MIC811MUYTR?
You can click on the BUY or RFQ button to purchase MIC811MUYTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC811MUYTR?
You can download the MIC811MUYTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC811MUYTR?
Microchip Technology
