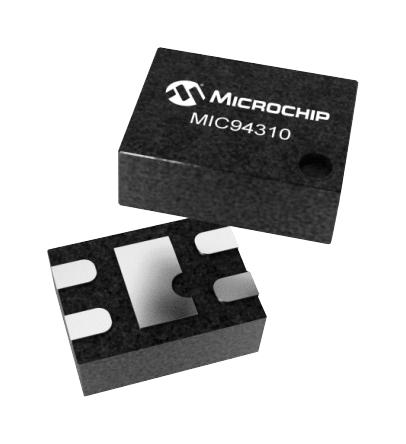

Microchip Technology MIC94310PYMTT5 Low-Noise Regulator
The MIC94310 Ripple Blocker is a compact, high-performance monolithic LDO regulator offering 200mA load current with Ripple Blocker™ technology for low-frequency noise attenuation. Designed for RF, mobile, automotive, and industrial applications, it provides excellent ripple rejection (>50dB from 10Hz to 10MHz), high efficiency close to the output voltage, thermal and overcurrent protection, and a small package for space-constrained designs. It operates from 1.8V to 3.6V input, includes a logic enable pin, and ensures stable regulation with low noise for sensitive circuits.
Microchip Technology MIC94310PYMTT5 Low-Noise Regulator Specifications:
- Input Voltage Range: 1.8V to 3.6V
- Output Current: 200mA
- Dropout Voltage: 20mV at 100mA, 40mV at 200mA
- Response Bandwidth: Ripple rejection >50dB from 10Hz to 10MHz
- Package Options: 0.88mm x 0.88mm 4-ball CSP, 4-pin 1.2mm x 1.6mm Thin MLF®
- Operating Temperature Range: -40°C to +125°C
- Enable Pin: Logic HIGH to enable, LOW to disable
- Protection: Current limit, thermal shutdown
- Efficiency: Near input voltage due to low dropout
- Capacitors: Input 0.47uF ceramic; Output 0.47uF to 1uF ceramic for stability
- ESD Rating: 250°C/W (CSP package), 173°C/W (MLF package)
Buy the Micrel MIC94310 – Reliable Ripple Blocker for Industrial Applications
Purchase the Micrel MIC94310 Ripple Blocker today for your design projects. This high-efficiency, low-noise regulator serves critical applications in RF, automotive, and industrial electronics. Its compact design and robust protection features ensure long-lasting performance and reliability. With ripple rejection over 50dB from 10Hz to 10MHz and operation from 1.8V to 3.6V, it guarantees clean power delivery for sensitive circuits. Enhance your device stability and performance by buying this proven solution online now.
Get Micrel MIC94310 today—compact, high-performance Ripple Blocker with 200mA load capacity perfect for RF and industrial circuits.
Frequently Asked Questions
Where can I buy Microchip Technology MIC94310PYMTT5?
You can click on the BUY or RFQ button to purchase MIC94310PYMTT5 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MIC94310PYMTT5?
You can download the MIC94310PYMTT5 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MIC94310PYMTT5?
Microchip Technology
