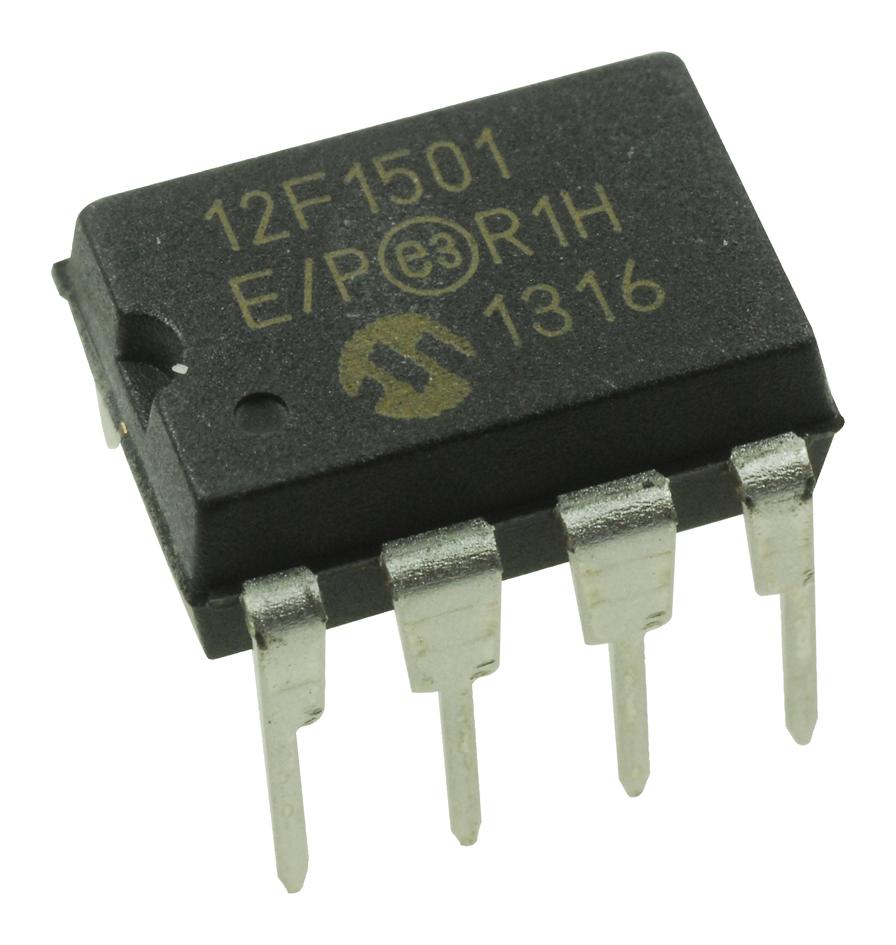

Microchip Technology PIC12F1501EP High-Performance Microcontroller
The PIC12F1501 is a high-performance 8-bit microcontroller with a 16 MHz internal oscillator, 1K Words Flash memory, 49 instructions, and integrated peripherals like ADC, DAC, comparators, and timers. It offers flexible clock modes, low power sleep options, and advanced features including Temperature Indicator, Configurable Logic Cell, NCO, CWG, and multiple PWM modules. Designed for battery-powered and low-voltage applications, it supports in-circuit serial programming, code protection, and varied package options for compact embedded systems.
Microchip Technology PIC12F1501EP High-Performance Microcontroller Specifications:
- Physical Package Options: PDIP, SOIC, MSOP, DFN
- Pin Count: 8 pins
- Supply Voltage Range: 1.8V to 3.6V (standard), 2.3V to 5.5V (extended)
- Operating Temperature: -40°C to +85°C (industrial), -40°C to +125°C (extended)
- Memory: 1K Words Flash (up to 16K words in other variants), 64 Bytes RAM
- Internal Oscillator: 16 MHz calibrated HFINTOSC, 31 kHz LFINTOSC
- Clock Modes: EC (external clock low-power, medium or high), INTOSC (internal oscillator)
- Timers: Timer0 8-bit, Timer1 16-bit with gate control, Timer2 8-bit with prescaler and postscaler
- Peripherals: ADC 10-bit, DAC, Comparators, PWM 4 modules, CLC 2 modules, NCO with 20-bit accumulator
- Interrupts: Multiple vector sources, automatic context saving, wake-up from Sleep
- Power Modes: Sleep with configurable Low-Power modes, Watchdog Timer and Brown-out Reset support
- Device protection: Code Protection, Write Protection, Device ID & User ID registers
- In-Circuit Serial Programming (ICSP), available in 5-pin interface
- Developed for low power, portable, and battery-powered embedded systems
Buy the Microchip PIC12F1501 – Reliable Microcontroller for Embedded Applications
Discover the Microchip PIC12F1501, a versatile 8-bit microcontroller with a 16 MHz internal oscillator, 10-bit ADC, DAC, timers, PWM, and advanced peripherals. Designed for low-voltage, battery-powered applications, it supports in-circuit serial programming, code protection, and multiple package options including PDIP, SOIC, MSOP, and DFN. With extensive features like Configurable Logic Cells, Numerically Controlled Oscillator, and temperature sensing, this device ensures efficient, reliable performance in compact embedded systems. Perfect for portable and low-power solutions, it guarantees optimal performance, safety, and easy integration into your designs.
Order your Microchip PIC12F1501 microcontroller today and enhance your embedded projects with reliable performance, low power consumption, and extensive peripheral integration.
Frequently Asked Questions
Where can I buy Microchip Technology PIC12F1501EP?
You can click on the BUY or RFQ button to purchase PIC12F1501EP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC12F1501EP?
You can download the PIC12F1501EP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC12F1501EP?
Microchip Technology
