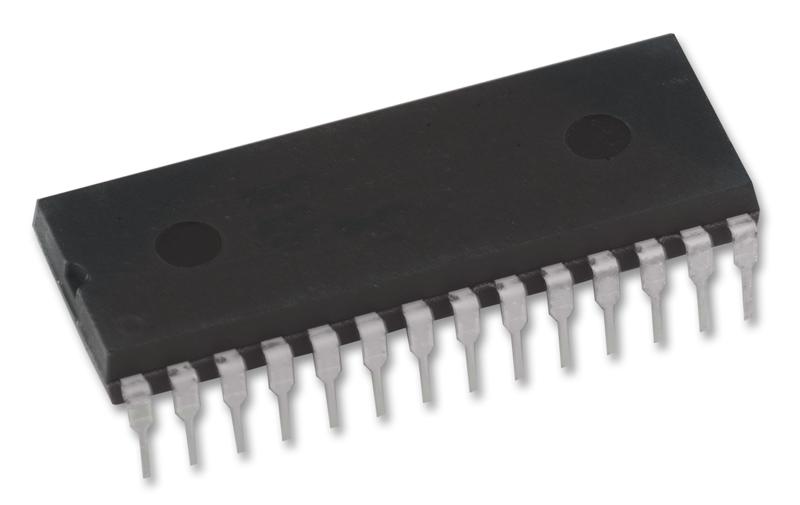

Microchip Technology PIC16C55A04P Microcontroller
The PIC16C55A04P is a high-performance 8-bit CMOS microcontroller with EPROM/ROM memory, employing a RISC architecture. It features a Power-on Reset, Device Reset Timer, Watchdog Timer, and supports multiple oscillator modes including RC, XT, HS, and LP. With a 512-byte program memory, 25 bytes of data RAM, and 20 I/O pins, it offers easy-to-use, single-cycle instructions (except branches). Suitable for motor control, remote transmitters, timers, and more, it supports flexible package options and voltage ranges for commercial and industrial applications.
Microchip Technology PIC16C55A04P Microcontroller Specifications:
- Memory Size: 512 bytes EPROM/ROM, 25 bytes RAM
- Instruction Set: 33 single-word, 12-bit instructions, single-cycle (branches 2 cycles)
- Clock Speed: Up to 40 MHz in HS mode, 4 MHz in XT and RC modes
- Voltage Range: 2.0V to 6.25V (Commercial/Industrial)
- Package Options: 18-pin DIP, SOIC; 28-pin DIP, SOIC; 20-pin SSOP
- I/O Pins: 12 to 20 depending on variant
- Oscillator Modes: RC, XT, HS, LP with programmable configuration bits
- Power Consumption: Low power modes with sleep and power-down features
- Timers: 8-bit Timer0 with prescaler, watchdog timer with own RC oscillator
- Code Protection: Programmable, supported via configuration bits
- Temperature Range: 0°C to 70°C (Commercial), -40°C to 85°C (Industrial), -40°C to 125°C (Extended)
- Supported Packaging: DIP, SOIC, SSOP, CERDIP, and Windowed CERDIP
- Application: Motor control, timers, remote communications, embedded systems
Buy the Microchip PIC16C55A04P – Reliable Microcontroller for Industrial Applications
Purchase the Microchip PIC16C55A04P microcontroller today online and ensure your embedded system benefits from high speed, low power consumption, and reliable operation. With multiple oscillator modes, extensive protections, and a robust memory layout, this device is perfect for industrial automation, motor control, and remote communication needs. Its compact package options make integration seamless, and its advanced features reduce system costs while enhancing performance. Secure your inventory now for a versatile, high-quality microcontroller that keeps your project running efficiently and reliably.
Order your Microchip PIC16C55A04P today and give your projects the dependable performance they deserve with flexible oscillator options and integrated safety features.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16C55A04P?
You can click on the BUY or RFQ button to purchase PIC16C55A04P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16C55A04P?
You can download the PIC16C55A04P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16C55A04P?
Microchip Technology
