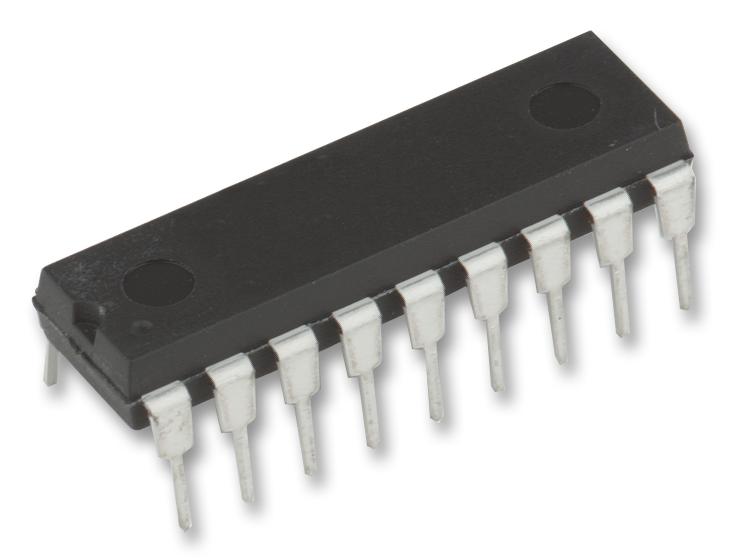

Microchip Technology PIC16C71004P Microcontroller with ADC
The PIC16C71004P is a low-cost, high-performance 8-bit CMOS microcontroller with integrated analog-to-digital converter, multiple oscillator options, and power-saving features. It features a 14-bit instruction set, 512 words of program memory, 36 bytes of RAM, and 13 I/O pins. The device supports in-circuit serial programming, watchdog timer, and various reset modes including Power-on Reset, Brown-out Reset, and Power-up Timer. It is ideal for applications with space constraints and requires low power consumption, such as pressure sensors, thermostats, and remote controls.
Microchip Technology PIC16C71004P Microcontroller with ADC Specifications:
- Physical Package: 18-pin DIP, SOIC, SSOP, TQFP, MQFP
- Operating Voltage Range: 2.5V to 6.0V
- Instruction Set: 35 instructions, 14-bit wide
- Program Memory: 512 words (x14)
- Data Memory: 36 bytes (PIC16C710/711) or 68 bytes (PIC16C711) or 128 bytes (PIC16C715)
- I/O Pins: 13 bidirectional pins
- Accumulator: 8-bit ALU
- ADC: 4 channels, 8-bit resolution, with configurable reference voltage
- Oscillator Options: LP, XT, HS, RC
- Power-down SLEEP mode
- Watchdog Timer with its own RC oscillator
- Power-on Reset (POR), Brown-out Reset (BOR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
- In-circuit serial programming support
- Package types include: PDIP, SOIC, SSOP, QFP, MQFP
- Maximum frequency: up to 20 MHz (depending on configuration)
- Current Consumption: <2mA at 5V, 4 MHz
- Analog Inputs: 4 channels for ADC
- Protection: Programmable code protection, voltage transient tolerance
Buy the Buy Microchip PIC16C71004P Part Number PIC16C71004P Online
Get the Microchip PIC16C71004P today from our online store. This 8-bit CMOS microcontroller offers high performance with 14-bit instructions, multiple oscillator options, and power-saving features. Equipped with 36 bytes of RAM, 13 I/O pins, and in-circuit serial programming, it’s perfect for space-constrained projects such as thermostats, sensors, and remote controls. Enjoy fast delivery, competitive prices, and secure transactions when you order the PIC16C71004P online for your embedded system needs.
Order your Microchip PIC16C71004P device today and benefit from its low power, integrated ADC, and versatile oscillator options for your embedded applications.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16C71004P?
You can click on the BUY or RFQ button to purchase PIC16C71004P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16C71004P?
You can download the PIC16C71004P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16C71004P?
Microchip Technology
