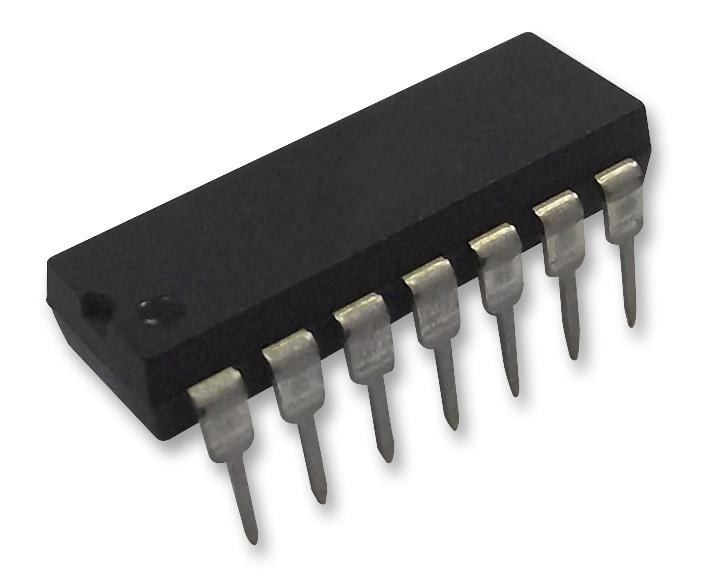

Microchip Technology PIC16LF1554IP Microcontroller
The PIC16LF1554 is a low-power, 8-bit microcontroller with 14/20 pins, enhanced mid-range CPU, multiple timers, PWM modules, ADC with CVD, and serial communication peripherals including I2C and SPI. Its features include an internal 16 MHz HF oscillator, flexible clock switching, self-programmable Flash memory, and various I/O ports with analog and digital functions. Suitable for compact embedded applications requiring low energy consumption, robustness, and versatile connectivity options.
Microchip Technology PIC16LF1554IP Microcontroller Specifications:
- Device: PIC16LF1554
- Pin Count: 14/20 pins, Surface-Mount and DIP packages
- Core: 8-bit, High-performance mid-range CPU, 49 instructions
- Clock: Internal 16 MHz HF oscillator, External clock or PLL for 32 MHz
- Memory: Up to 4,096 words (PIC16LF1554), Up to 8,192 words (PIC16LF1559), Flash Program Memory
- Timers: Timer0, Timer1 (16-bit), Timer2 (8-bit), with prescalers and external clock options
- Peripherals: ADC (with CVD), PWM modules (PWM1, PWM2), Serial interfaces (I2C, SPI, EUSART)
- GPIO: Multiple digital and analog ports with configurable direction and pull-up resistors
- Voltage Range: 1.8V to 3.6V, low power consumption with XLP technology
- Power Features: Sleep mode, Watchdog Timer, Brown-Out Reset and Power-Up Timer
- Package: 14/20 Pin SOIC, SSOP, TSSOP, QFN families
- Programming: In-circuit serial programming (ICSP) with high-voltage and low-voltage options
- Operating Temp: -40°C to +125°C depending on configuration
- Certifications: UL, CSA, and others for industry standards
Buy the Microchip Series 1554 PWM: PIC16LF1554
Order the Microchip PIC16LF1554 microcontroller online today to enjoy reliable performance in compact, low-power designs. Perfect for automation, IoT, and portable devices, this 14/20-pin device features a high-performance 8-bit CPU, internal 16 MHz oscillator, multiple timers, ADC with capacitive sensing, PWM modules, and serial communication peripherals including I2C, SPI, and EUSART. It ensures energy efficiency with XLP technology, flexible clock switching, and robust safety features like watchdog timer and brown-out reset. Available with quick delivery, excellent documentation, and support—order now to accelerate your project development.
Get Microchip PIC16LF1554 today—built for precision, versatility, and ultra-low power operation for your embedded designs.
Frequently Asked Questions
Where can I buy Microchip Technology PIC16LF1554IP?
You can click on the BUY or RFQ button to purchase PIC16LF1554IP from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC16LF1554IP?
You can download the PIC16LF1554IP datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC16LF1554IP?
Microchip Technology
