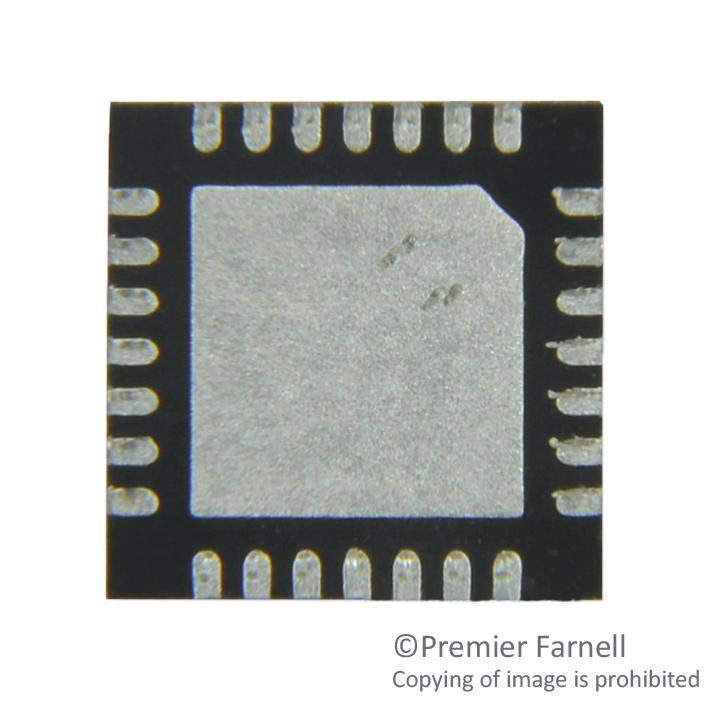

Microchip Technology PIC18F26J50IML Microchip PIC18F Family
The PIC18F26J50 is a high-performance, low-power USB microcontroller featuring a 28-pin QFN package, 16K instructions program memory, 10-bit ADC with 13 channels, and advanced communication peripherals including MSSP, USB, and enhanced PWM. It supports multiple power modes like Sleep, Idle, Deep Sleep, and operates over a wide voltage range from 2.15V to 3.6V. The device offers robust clock options, on-chip voltage regulation, and extensive development support, making it ideal for USB applications, capacitive sensing, and embedded control systems.
Microchip Technology PIC18F26J50IML Microchip PIC18F Family Specifications:
- Package: 28-pin QFN, 44-pin TQFP, 28-pin SOIC, 44-pin SSOP, 44-pin QFN/ML
- Instruction Memory: 16K instructions (up to 32K in some variants)
- ADC: 10-bit resolution, 13 input channels
- Operating Voltage: 2.15V to 3.6V
- Max Power Dissipation: varies by mode and conditions
- Clock Options: Internal oscillator, external crystal, PLL up to 48 MHz
- USB Support: Full-speed (12 Mbps) and Low-speed (1.5 Mbps), compliant with USB 2.0
- Peripherals: MSSP, ECCP, ADC, Comparator, HLVD, CTMU, WDT, RTC
- Power Modes: Run, Idle, Sleep, Deep Sleep, with automatic wake-up features
- Voltage Regulation: On-chip, configurable, supports external VCAP or regulator disable
- Development Support: MPLAB IDE, MPLAB C18, MPLAB C30, MPLINK, MPLAB SIM, MPLAB ICE 2000 & REAL ICE
Buy the Microchip Series 46J50 PIC18F Family MCU: 16K Instruction, 10-bit ADC, USB Support
Discover the high-performance and low-power PIC18F family microcontrollers from Microchip, featuring advanced USB, ADC, communication peripherals, and multiple power modes. Ideal for USB applications, capacitive sensing, and embedded control systems, these MCUs deliver robust operation, extensive development support and versatile clock options across various packages. Order online today and give your designs the reliability and efficiency only Microchip can provide.
Order your Microchip Series 46J50 PIC18F family MCU today and enhance your USB and embedded control solutions with reliable performance and low power consumption.
Frequently Asked Questions
Where can I buy Microchip Technology PIC18F26J50IML?
You can click on the BUY or RFQ button to purchase PIC18F26J50IML from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC18F26J50IML?
You can download the PIC18F26J50IML datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC18F26J50IML?
Microchip Technology
