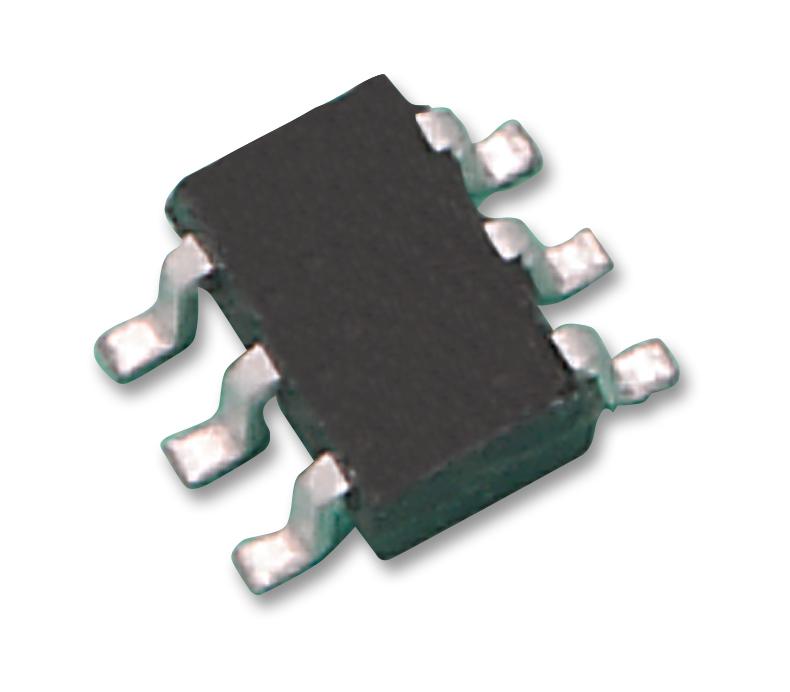

Microchip Technology TC670ECHTR Fan Failure Sensor
The TC670ECHTR is an integrated fan speed sensor designed to prevent thermal damage by detecting fan failure in cooling systems. It monitors fan speed via pulse detection and asserts an ALERT signal when the speed falls below a user-defined threshold, set using a resistor divider on the THRESHOLD pin. Compatible with all linear-controlled 2-wire fans, it simplifies system design by removing the need for 3-wire solutions. Featuring a low operating current of about 90µA, it is ideal for industrial equipment, power supplies, and data storage applications, offering reliable fan failure detection with reset capabilities for system flexibility.
Microchip Technology TC670ECHTR Fan Failure Sensor Specifications:
- Supply Voltage: 3.0V to 5.5V
- Supply Current: approximately 90µA (typ.)
- Temperature Range: -40°C to +85°C
- GND: Ground terminal
- Pin Configuration: 6-pin SOT-23 package
- ALERT Output: Open-drain, requires external pull-up resistor
- THRESHOLD Input: Analog, sets fan speed threshold via resistor divider
- SENSE Input: Analog, detects pulse signals from fan
- CLEAR Pin: Digital input to reset ALERT signal
- Vpp Range: 3.0V to 5.5V
- Pin Descriptions: THRESHOLD (analog), GND, CLEAR (digital), VDD (power), ALERT (digital), SENSE (analog)
- Operating Temperature: -40°C to +85°C
- Electrical Characteristics: VTH(SENSE) ~124mV, Rsense ~50kΩ, ALERT low voltage 0.3V, output delay time 176ms
- Protection: ESD protection on all pins
- Package Type: SOT-23A-6
Buy the Microchip TC670 – Reliable Fan Failure Detection for Industrial Applications
Order the Microchip TC670 fan failure detector online today and enhance system reliability. With its adjustable threshold, low current draw, and compatibility with all linear-controlled 2-wire fans, it offers precise failure prediction while reducing false alarms. Its compact SOT-23 package and wide temperature range make installation easy for industrial equipment, power supplies, and data storage applications. Trust Microchip’s proven quality for safe, efficient thermal management in your critical systems and prevent costly thermal damage by acting early on fan failures.
Buy Microchip TC670 now and ensure reliable fan failure detection with low power consumption for industrial systems and data storage devices.
