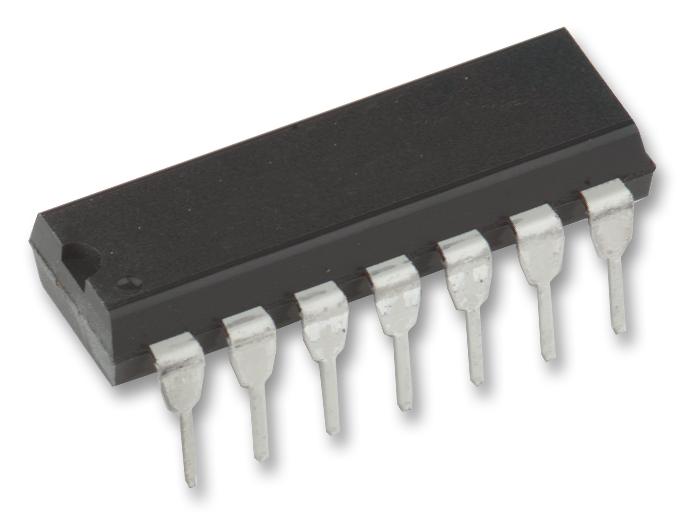

Microchip Technology TC9400CPD Voltage-Frequency Converter
The TC9400 is a low-cost, CMOS-based Voltage-to-Frequency and Frequency-to-Voltage converter designed for precise analog signal measurement. It features high linearity, low power dissipation of 27 mW, and operates over a wide voltage range of +8V to +15V or +4V to +7.5V. The device supports DC to 100 kHz (F/V) or 1 Hz to 100 kHz (V/F) signal frequencies and is suitable for use in microprocessor data acquisition, motor control, phase-locked loops, and frequency measurement applications. Its stability and programmable scale factor make it ideal for industrial automation systems.
Microchip Technology TC9400CPD Voltage-Frequency Converter Specifications:
- Power Supply Voltage: V+ = 8V to 15V or 4V to 7.5V
- Power Dissipation: 27 mW (typical)
- Linearity: TC9400: 0.05%, TC9401: 0.01%, TC9402: 0.25%
- Frequency Range: DC to 100 kHz (F/V), 1 Hz to 100 kHz (V/F)
- Temperature Stability: +25 ppm/°C (typical)
- Operation Mode: Single or Dual supply
- Physical Package: 14-Pin Plastic DIP or SOIC
- Input Voltage Range: 0 V to Vpp (typically +5V logic compatible)
- Output Type: Pulse train (F/V) or Linearly proportional voltage (V/F)
- Applications: Data acquisition, motor control, phase-locked loops, frequency meters
- Package Dissipation (Tq < 70°C): 800 mW (CerDIP), 750 mW (SOIC), 800 mW (PDIP)
Buy the Microchip TC9400 – Reliable Voltage-to-Frequency Converters for Industrial Applications
Purchase the Microchip TC9400 voltage-to-frequency and frequency-to-voltage converter online today. It offers high linearity, low power consumption, and supports a wide frequency range. Perfect for industrial automation, motor control, phase-locked loops, and data acquisition systems, the TC9400 ensures accurate analog signal measurement and conversion. Its robust CMOS design and flexible power options make it suitable for various industrial environments. Order now and enhance your electronic measurement and control systems with this reliable, cost-effective converter that delivers precise performance.
Get Microchip TC9400 today—built for precision and long-lasting durability for industrial automation and signal processing needs.
Frequently Asked Questions
Where can I buy Microchip Technology TC9400CPD?
You can click on the BUY or RFQ button to purchase TC9400CPD from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC9400CPD?
You can download the TC9400CPD datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC9400CPD?
Microchip Technology
