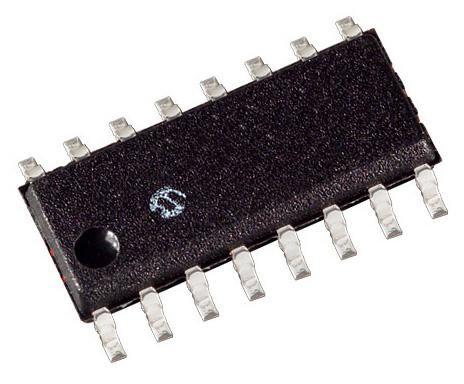

Microchip Technology TC962COE Charge Pump Converter
The TC962 is a high current charge pump DC-to-DC converter that operates from 3V to 18V. It sources up to 80 mA, with an efficiency of 99.9%, ideal for applications like laptops, disk drives, and instrumentation. The device eliminates the need for external diodes and low voltage terminals, offers wide frequency doubling, and features an integrated Zener diode for voltage regulation. Its advanced CMOS design ensures reliable performance, low output impedance, and compact implementation with only two external capacitors required for inverter operation.
Microchip Technology TC962COE Charge Pump Converter Specifications:
- Output Current: 80 mA
- Wide Operating Range: 3V to 18V
- Output Impedance: 28Ω typical
- Efficiency: 99.9%
- Power Conversion Efficiency: 97%
- No External Diodes Needed
- Pin Compatible With TC7662/ICL7662/SI7661
- Package Types: 16-Pin SOIC, 8-Pin DIP, CERDIP
- Operating Temperature Range: 0°C to +70°C (SOIC), -40°C to +85°C (EPA)
- Oscillator Frequency Doubling: Pin 6 GND doubles frequency to 24kHz
- Zener Voltage: 6.2V @ 5mA, Dynamic Impedance 12Ω
- Package Power Dissipation: 760mW (SOIC), 730mW (PDIP)
- Thermal Resistance: CERDIP 0°C/W, PDIP 140°C/W
- Storage Temperature Range: -65°C to +150°C
- Supply Voltage: 3V to 18V
- ESD Protection: 2000V
Buy the Buy Microchip TC962 Part Number TC962COE Online
Purchase the Microchip TC962 online today for advanced high current DC-to-DC conversion. Its excellent efficiency, compact design, and no external diodes make it perfect for portable and instrumentation applications. Source up to 80 mA with minimal external components, ensuring reliable power regulation across a wide voltage range. Whether you need a high-performance inverter, voltage multiplier, or regulator, the TC962 offers robust and efficient operation. Buy now to improve your electronics’ power management with Microchip’s proven quality and performance.
Buy Microchip TC962 now and enhance your circuit with high current charge pumping, excellent efficiency, and minimal external components for reliable operation.
Frequently Asked Questions
Where can I buy Microchip Technology TC962COE?
You can click on the BUY or RFQ button to purchase TC962COE from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part TC962COE?
You can download the TC962COE datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of TC962COE?
Microchip Technology
