Microchip Technology UCS10011BPTR USB Power Controller
The UCS1001 is a versatile USB port power controller with charger emulation that offers precise control of up to 2.5A current, over-current protection, thermal management, and fault handling. It supports split supply options for low-power standby states, enabling battery-operated devices like notebooks and tablets to detect attachments and manage charging efficiently. Compatible with various portable devices, it features nine charger profiles, high-speed data switching, and low power sleep modes. The 20-pin QFN package ensures compact installation, making it ideal for modern electronic systems requiring reliable power management.
Microchip Technology UCS10011BPTR USB Power Controller Specifications:
- Input Voltage: 29V to 5.5V
- Maximum Current: 2.5A with 55 mΩ On Resistance
- Over-Current Trip and Constant Current Limiting
- Operating Temperature Range: -40°C to +85°C
- Package: 20-pin QFN 4mm x 4mm
- Support for split supply VBUS and VDD
- USB-IF BC1.2 compliant charging profiles
- Fault detection: latch or auto-recovery
- Active low or high enable control
- Voltage Lockout: Under- and over-voltage
- Protection: Back-voltage and back-drive
- Profiles: Nine preloaded charger emulation modes
- Data Protocols: USB 2.0 high-speed switch
- ESD Immunity: IEC 61000-4-2 8/15kV
- Certifications: UL recognized, EN/IEC 60950-1 CB

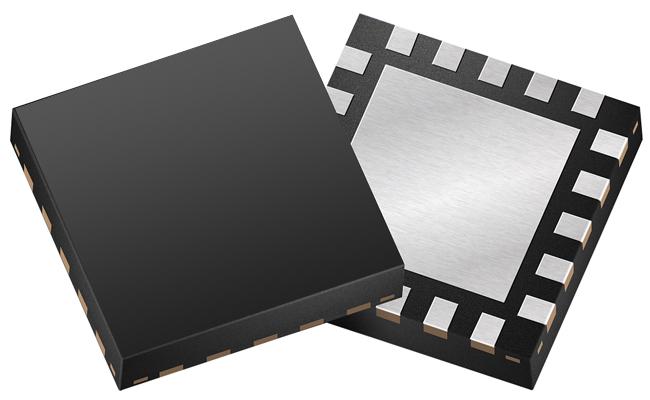

Buy the SMSC Series UCS1001 USB Port Power Controller: UCS1001BPTR
Enhance your electronic system with the SMSC UCS1001 USB Power Controller, offering precise current control, advanced protection features, and charger emulation for a wide range of portable devices. Its compact 20-pin QFN package makes it suitable for space-constrained applications like notebooks, tablets, and docking stations. With support for multiple charging profiles and high-speed data switching, this controller ensures seamless device compatibility and reliable power management. Buy SMSC UCS1001BPTR online to upgrade your device’s power and charging capabilities immediately.
Buy SMSC UCS1001BPTR now and experience unmatched reliability and performance in USB power management and charger emulation for modern electronic devices.
Frequently Asked Questions
Where can I buy Microchip Technology UCS10011BPTR?
You can click on the BUY or RFQ button to purchase UCS10011BPTR from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part UCS10011BPTR?
You can download the UCS10011BPTR datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of UCS10011BPTR?
Microchip Technology
