Microchip Technology UCS3205EQ8A Bidirectional Load Switch
The UCS3205 is a highly integrated, bidirectional load switch designed for applications up to 22V, supporting 5A continuous current with configurable overcurrent, overvoltage lockout, thermal shutdown, and Fast Role Swap features. It manages bidirectional current flow, supports USB Power Delivery and industrial, automotive power protections. Its compact 19-pin VQFN package includes scaled analog current monitoring, auto-recovery faults, and reset modes for reliable operation in power management systems, ensuring safety and efficiency in consumer electronics, automotive, and industrial applications.
Microchip Technology UCS3205EQ8A Bidirectional Load Switch Specifications:
- Voltage Range: 2.85V to 22V
- Continuous Current: 5A
- On Resistance: 30 mΩ typical
- Package: 19-Lead VQFN (3x3x0.9 mm)
- Scaled Analog Current Output: Varying with current flow through switch
- Configurable Overcurrent Limit: External resistor programming
- Overvoltage Lockout: Yes, configurable
- Thermal Shutdown: Yes, hysteresis of 20°C
- Reverse current blocking: Support via DIR pin
- Fault Handling: Auto-recovery or latch mode
- Fast Role Swap (FRS): Supported, configurable via FRS pin
- Output Discharge: Controlled via DSC pin
- Operating Temperature: -40°C to +125°C
- ESD protection: 15 kV (Human Body Model)
- Pin Functionality: GND, EN, FRS, DIR, DSC, FAULT#, LATCH, ISEN (analog), VOV (analog), VOUT, VIN (exposed pads)

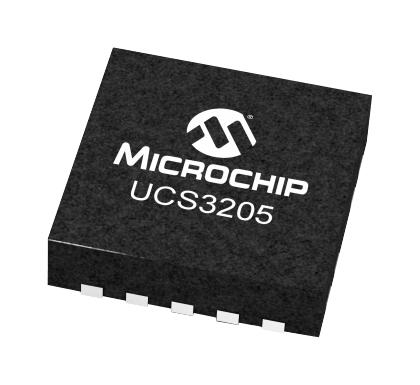

Buy the Buy Microchip UCS3205 Part Number UCS3205EQ8A Online
Purchase the Microchip UCS3205 today to benefit from a robust 22V, 5A bidirectional load switch with configurable fault protections, compact VQFN package, and advanced safety features. Perfect for USB Power Delivery, automotive, and industrial power systems, ensuring efficient and safe operation. Our online ordering process guarantees quick delivery, reliable support, and authentic Microchip quality for your sensitive applications. Enhance your power management designs with this versatile, high-performance switch, available now for immediate online purchase.
Order your Microchip UCS3205 load switch with bidirectional current support today and ensure reliable power management in your industrial or automotive projects.
