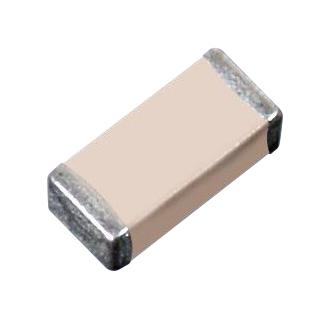

NIC COMPONENTS NMC0201X7R102K25TRPF Ceramic Chip Capacitor
The NMC Series X7R multilayer ceramic chip capacitor features a temperature-stable Class II dielectric with excellent frequency characteristics and high capacitance capacity. Suitable for high-density electronic circuits, it offers capacitance values ranging from 47pF to 91, with tolerance options of ±5%, ±10%, or ±20%. Operating over -55°C to +125°C, its rated voltages include 10Vdc, 16Vdc, 25Vdc, and higher. This capacitor provides low dissipation factor, reliable insulation resistance, and dielectric withstanding voltage up to 250% of rated voltage, making it ideal for precise electronic applications.
NIC COMPONENTS NMC0201X7R102K25TRPF Ceramic Chip Capacitor Specifications:
- Capacitance range: 47pF to 91, with high CV values available
- Capacitance tolerance: ±5% (J), ±10% (K), ±20% (M)
- Operating temperature: -55°C to +125°C
- Rated voltages: 10Vdc, 16Vdc, 25Vdc, 35Vdc, 50Vdc
- Dissipation factor: max. 2.5% at 50Vdc; max. 3.5% at 16Vdc and 25Vdc
- Insulation resistance: ≥10,000 Megohms at +25°C
- Dielectric withstanding voltage: 250% of rated voltage for 1-5 seconds
- Physical size options: 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2225
- Maximum thickness: 0.45mm to 2.20mm depending on size
- Termination: 100% Sn over Ni barrier, suitable for reflow soldering
- RoHS compliant and available with optional tape & reel packaging
- Applicable for high-density, surface-mount applications requiring stability and reliability
Buy the NIC Series X7R Capacitor: NMC0201X7R102K25TRP
Purchase the NIC Series X7R ceramic chip capacitor online now to ensure your electronic projects benefit from excellent thermal stability, reliable insulation resistance, and a broad working temperature range from -55°C to +125°C. These surface-mount components feature high capacitance values, low dissipation factors, and 100% Sn over Ni barrier terminations for robust reflow soldering. Ready for various voltage levels including 10V, 16V, and 25V, they are ideal for demanding electronics and high-density circuit designs, providing superior performance and consistent quality.
Order your NIC Series X7R capacitor today and give your electronic circuits the dependable temperature stability and high capacitance they need.
Frequently Asked Questions
Where can I buy NIC COMPONENTS NMC0201X7R102K25TRPF?
You can click on the BUY or RFQ button to purchase NMC0201X7R102K25TRPF from an authorized NIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NMC0201X7R102K25TRPF?
You can download the NMC0201X7R102K25TRPF datasheet or visit the NIC COMPONENTS website for support.
Who is the manufacturer of NMC0201X7R102K25TRPF?
NIC COMPONENTS
