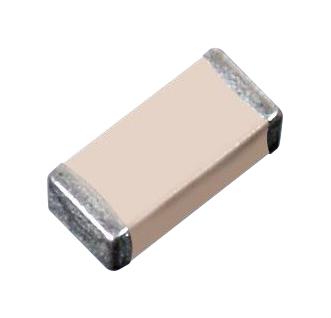

NIC COMPONENTS NMC0402X5R225K10TRPF Multilayer Ceramic Capacitor
Multilayer ceramic chip capacitor series X5R offers high dielectric stability with excellent frequency characteristics and mechanical strength. Available in various sizes including 01005, 0201, 0402, 0603, and larger, these capacitors feature capacitance values from 100pF up to 0.82uF, with voltages up to 50V. They provide reliable performance over a wide temperature range from -55°C to +125°C, ensuring stable capacitance with low dissipation factor and high insulation resistance. Suitable for surface-mount applications, they are RoHS compliant and come in tape & reel packaging for automated assembly.
NIC COMPONENTS NMC0402X5R225K10TRPF Multilayer Ceramic Capacitor Specifications:
- Capacitance Range: 100pF to 0.82uF
- Capacitance Tolerance: ±10% (K), ±20% (M)
- Operating Temperature Range: -55°C to +125°C
- Rated Voltages: 6.3V, 10V, 16V, 25V, 35V, 50V
- Dielectric Characteristics: X5R, Temperature Coefficient ±15%
- Dissipation Factor: See datasheet values at 1KHz @ +25°C
- Insulation Resistance: ≥10,000 MΩ or ≥500 MΩ·uF at +25°C
- Dielectric Withstanding Voltage: 250% of Rated Voltage for 1-5 seconds
- Reflow Soldering Allowed, RoHS compliant, available in tape & reel packaging
- Case Sizes: 01005, 0201, 0402, 0603, 1206, and larger
- Tape & Reel Quantity: 20,000 units (varies per size)
Buy the NIC Series X5R Multilayer Ceramic Chip Capacitors: NMC0402X5R225K10TRPF
Purchase NIC Series X5R multilayer ceramic chip capacitors online today to ensure reliable performance with high dielectric stability, wide temperature range, and compatibility with automated assembly. Designed for surface-mount applications, these capacitors offer excellent frequency characteristics, low dissipation factor, and high insulation resistance. Available in multiple case sizes including 01005, 0201, 0402, and larger, they come in tape & reel packaging with RoHS compliance. Stocked in high quantities for fast delivery and optimal manufacturing performance.
Get NIC Series X5R ceramic chip capacitor today—built for precision and long-lasting durability in surface-mount electronics.
Frequently Asked Questions
Where can I buy NIC COMPONENTS NMC0402X5R225K10TRPF?
You can click on the BUY or RFQ button to purchase NMC0402X5R225K10TRPF from an authorized NIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NMC0402X5R225K10TRPF?
You can download the NMC0402X5R225K10TRPF datasheet or visit the NIC COMPONENTS website for support.
Who is the manufacturer of NMC0402X5R225K10TRPF?
NIC COMPONENTS
