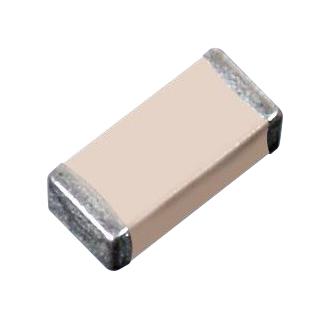

NIC COMPONENTS NMC0603X7R472K50TRPF Ceramic Capacitor
The NMC Series X7R Multilayer Ceramic Chip Capacitors are robust, temperature-stable components designed for high-volume electronic applications. Featuring a Class II dielectric, these capacitors operate efficiently from -55°C to +125°C, offering capacitance values from 47pF to 0.82uF with precise tolerances of ±5%, ±10%, or ±20%. Suitable for high-frequency circuits, they support rated voltages up to 50Vdc, with excellent insulation resistance and dielectric withstanding voltage. Their compact size and reliable RoHS compliance make them ideal for modern surface-mount devices and dense circuit boards.
NIC COMPONENTS NMC0603X7R472K50TRPF Ceramic Capacitor Specifications:
- Capacitance Range: 47pF to 0.82uF
- Capacitance Tolerance: ±5% (J), ±10% (K), ±20% (M)
- Operating Temperature: -55°C to +125°C
- Rated Voltages: 10Vdc, 16Vdc, 25Vdc, 35Vdc, 50Vdc
- Dissipation Factor: Max 2.5% (50Vdc, 100Vdc); Max 3.5% (16Vdc, 25Vdc); Max 5% (10Vdc)
- Insulation Resistance: Min 10,000 Megohms or 500 Megohms per uF
- Dielectric Withstanding Voltage: 250% of Rated Voltage for 1-5 seconds
- Max Thickness: 4.45mm for larger sizes, 1.35mm for smaller series
- Physical Sizes: From 0201 to 1812 case sizes, various dimensions listed
- Material: Multilayer ceramic with Ni barrier over 100% Sn coating
- RoHS Compliant: Yes
Buy the Buy NIC Components NMC Series X7R Capacitors Part Number NMC0603X7R472K50TRPF Online
Purchase the NIC Components NMC Series X7R ceramic capacitor online today for high-temperature stability, broad capacitance range, and robust RoHS compliance. These surface-mount components are crafted for high-frequency applications, supporting voltages up to 50Vdc with excellent insulation resistance and dielectric withstand capabilities. Ideal for dense circuit boards, communication devices, and consumer electronics, this capacitor series offers proven durability, precise tolerance, and compact sizes, making it a dependable choice for industrial and electronic manufacturing projects that demand quality and consistency.
Order your NIC Components NMC0603X7R472K50TRPF series ceramic capacitor today and ensure reliable high-frequency performance for your electronic projects.
Frequently Asked Questions
Where can I buy NIC COMPONENTS NMC0603X7R472K50TRPF?
You can click on the BUY or RFQ button to purchase NMC0603X7R472K50TRPF from an authorized NIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NMC0603X7R472K50TRPF?
You can download the NMC0603X7R472K50TRPF datasheet or visit the NIC COMPONENTS website for support.
Who is the manufacturer of NMC0603X7R472K50TRPF?
NIC COMPONENTS
