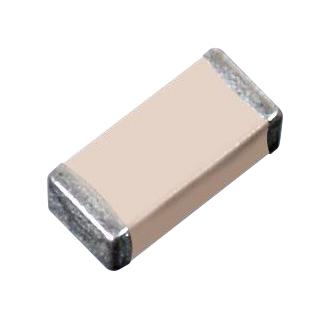

NIC COMPONENTS NMC0805X7R106K63TRPLPF High Stability Ceramic Capacitor
The NMC Series X7R multilayer ceramic chip capacitor offers high stability, a broad capacitance range from 47pF to 91μF, and operates reliably from -55°C to +125°C. Designed with Class II dielectric, it features excellent frequency characteristics and a temperature coefficient of ±15% over the temperature range. Suitable for surface-mount applications, it supports various rated voltages up to 50Vdc, with RoHS compliance and nickel barrier terminations, making it ideal for high-performance electronics demanding stable capacitance and high reliability.
NIC COMPONENTS NMC0805X7R106K63TRPLPF High Stability Ceramic Capacitor Specifications:
- Capacitance Range: 47pF to 91μF
- Capacitance Tolerance: ±5% (J), ±10% (K), ±20% (M)
- Operating Temperature Range: -55°C to +125°C
- Rated Voltages: 10Vdc, 16Vdc, 25Vdc, 35Vdc, 50Vdc
- Dissipation Factor: Max 2.5% (50Vdc, 100Vdc), Max 3.5% (16Vdc, 25Vdc), Max 5% (10Vdc)
- Insulation Resistance: Min 10,000 Megohms at 25°C
- Dielectric Withstanding Voltage: 250% of rated voltage for 1-5 sec
- Physical Size: 0805 case, 2.0 x 1.25 mm, max thickness 1.35mm
- RoHS-compliant, nickel barrier terminations, reflow solderable
- Temperature Coefficient: ±15% over temperature range
- Suitable for high-frequency applications, stable over temperature variations
Buy the NIC Series NMC 47pF-91μF X7R Ceramic Capacitor: NMC0805X7R106K63TRP
Purchase the NIC Series NMC0805X7R106K63TRP ceramic capacitor online today and enjoy fast delivery. This highly reliable surface-mount ceramic capacitor offers a broad capacitance range from 47pF to 91μF, with a temperature range of -55°C to +125°C, supporting rated voltages up to 50V. Featuring RoHS compliance and nickel barrier terminations, it is ideal for applications requiring high stability, excellent frequency characteristics, and robust performance under thermal stress. Perfect for high-frequency circuits, power supply filters, and general electronic applications.
Order your NIC Series NMC0805X7R106K63TRP high stability ceramic capacitor today and ensure reliable performance for your electronic projects.
Frequently Asked Questions
Where can I buy NIC COMPONENTS NMC0805X7R106K63TRPLPF?
You can click on the BUY or RFQ button to purchase NMC0805X7R106K63TRPLPF from an authorized NIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NMC0805X7R106K63TRPLPF?
You can download the NMC0805X7R106K63TRPLPF datasheet or visit the NIC COMPONENTS website for support.
Who is the manufacturer of NMC0805X7R106K63TRPLPF?
NIC COMPONENTS
