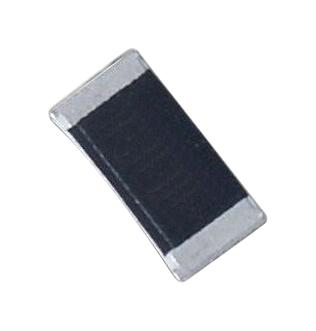

NIC COMPONENTS NRCAS06J682TRF Sulfur Resistant Chip Resistors
The NRC-AS series sulfur resistant thick film chip resistors are designed for high reliability in harsh environments. Available in various sizes from 0201 to 2512, they feature RoHS compliance and optional AEC-Q200 qualification. The resistors are SAC reflow solderable, withstand reflow at 260°C, and offer stable performance with resistance values from 1Ω to 10MΩ. Suitable for automated placement, these resistors are ideal for automotive, industrial, and demanding electronic applications where reliability and resistance to sulfur corrosion are essential.
NIC COMPONENTS NRCAS06J682TRF Sulfur Resistant Chip Resistors Specifications:
- Size: 0201 to 2512
- Resistance Range: 1Ω to 10MΩ
- Power Ratings: 0.05W to 1.0W depending on size
- Temperature Coefficient: As specified, varies by size, typical ±200ppm/°C
- Maximum Operating Voltage: 150V to 400V depending on size
- Overload Voltage: 2x maximum working voltage or specified overload voltage
- Maximum Reflow Soldering Temperature: 260°C for 10 seconds
- RoHS compliant, AEC-Q200 optional
- Reel Packaging: 15,000 units for 0201, up to 4,000 for larger sizes
- Dimensions: Small form factor, detailed in datasheet, withstands sulfur environments
- Qualifies for high-reliability applications in automotive, industrial electronics
Buy the NIC-Components NRC-AS Series Sulfur Resistant Chip Resistors: Part Number NRCAS06J682TRF
Experience the high reliability of NIC Components sulfur resistant chip resistors from the NRC-AS series. Designed for demanding industrial and automotive environments, these resistors offer exceptional stability and sulfur corrosion resistance. Available in sizes from 0201 to 2512, and with resistance values from 1Ω to 10MΩ, they are ideal for automated assembly with tape and reel packaging. With RoHS compliance and optional AEC-Q200 qualification, these resistors ensure long-term performance and durability in tough operating conditions. Order online now to advance your electronic projects.
Order your NIC Components Series NRC-AS sulfur resistant resistors today and ensure your projects have the dependable durability needed for harsh environments.
Frequently Asked Questions
Where can I buy NIC COMPONENTS NRCAS06J682TRF?
You can click on the BUY or RFQ button to purchase NRCAS06J682TRF from an authorized NIC COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part NRCAS06J682TRF?
You can download the NRCAS06J682TRF datasheet or visit the NIC COMPONENTS website for support.
Who is the manufacturer of NRCAS06J682TRF?
NIC COMPONENTS
